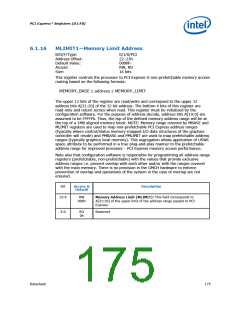

PCI Express* Registers (D1:F0)
6.1.20
PMLIMITU1—Prefetchable Memory Limit Address
B/D/F/Type:
Address Offset:
Default Value:
Access:
0/1/0/PCI
2C–2Fh
00000000h
RW
Size:
32 bits
The functionality associated with this register is present in the PEG design
implementation.
This register in conjunction with the corresponding Upper Limit Address register
controls the processor-to-PCI Express prefetchable memory access routing based on
the following formula:
PREFETCHABLE_MEMORY_BASE ≤ address ≤ PREFETCHABLE_MEMORY_LIMIT
The upper 12 bits of this register are read/write and correspond to address bits
A[31:20] of the 40- bit address. The lower 8 bits of the Upper Limit Address register
are read/write and correspond to address bits A[39:32] of the 40-bit address. This
register must be initialized by the configuration software. For the purpose of address
decode, address bits A[19:0] are assumed to be FFFFFh. Thus, the top of the defined
memory address range will be at the top of a 1MB aligned memory block.
Note that prefetchable memory range is supported to allow segregation by the
configuration software between the memory ranges that must be defined as UC and
the ones that can be designated as a USWC (i.e., prefetchable) from the processor
perspective.
Bit
Access &
Default
Description
31:0
Prefetchable Memory Address Limit (MLIMITU): This field
corresponds to A[63:32] of the upper limit of the prefetchable
Memory range that will be passed to PCI Express.
RW
00000000h
