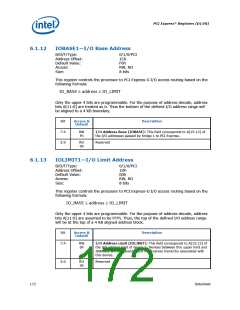

PCI Express* Registers (D1:F0)
6.1.17
PMBASE1—Prefetchable Memory Base Address
B/D/F/Type:
Address Offset:
Default Value:
Access:
0/1/0/PCI
24–25h
FFF1h
RW, RO
16 bits
Size:
This register in conjunction with the corresponding Upper Base Address register
controls the processor-to-PCI Express prefetchable memory access routing based on
the following formula:
PREFETCHABLE_MEMORY_BASE ≤ address ≤
PREFETCHABLE_MEMORY_LIMIT
The upper 12 bits of this register are read/write and correspond to address bits
A[31:20] of the 40-bit address. The lower 8 bits of the Upper Base Address register
are read/write and correspond to address bits A[39:32] of the 40-bit address. This
register must be initialized by the configuration software. For the purpose of address
decode, address bits A[19:0] are assumed to be 0. Thus, the bottom of the defined
memory address range will be aligned to a 1 MB boundary.
Bit
Access &
Default
Description
15:4
RW
FFFh
Prefetchable Memory Base Address (MBASE): This field
corresponds to A[31:20] of the lower limit of the memory range that
will be passed to PCI Express.
3:0
RO
1h
64-bit Address Support: This field indicates that the upper 32 bits of
the prefetchable memory region base address are contained in the
Prefetchable Memory base Upper Address register at 28h.
