Production Data
WM8352
20 GENERAL PURPOSE INPUTS / OUTPUTS (GPIO)
20.1 GENERAL DESCRIPTION

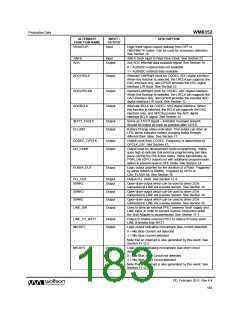

The WM8352 has thirteen general-purpose input/output (GPIO) pins; GPIO0 - GPIO12. These can
be configured as inputs or outputs, active high or active low, with optional on-chip pull-up or pull-
down resistors. Alternate functions are also available for each GPIO pin.
Note that different GPIO pins are supported on different power domains. The applicable power
domain is specific to a pin, not to a particular GPIO function. The power domains are as follows:
.
.
.
GPIO0 to GPIO3 : VRTC
GPIO4 to GPIO9 : DBVDD
GPIO10 to GPIO12 : LINE
Figure 79 GPIO Equivalent Circuit
PD, February 2011, Rev 4.4
179
