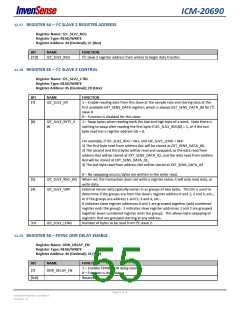

ICM-20690
12.37 REGISTER 61 – HIGH BYTE OF ACCELEROMETER Y-AXIS DATA
Register Name: ACCEL_YOUT_H
Register Type: READ
Register Address: 61 (Decimal); 3D (Hex)
BIT
NAME
FUNCTION
[7:0]
ACCEL_YOUT[15:8]
High byte of accelerometer y-axis data.
12.38 REGISTER 62 – LOW BYTE OF ACCELEROMETER Y-AXIS DATA
Register Name: ACCEL_YOUT_L
Register Type: READ
Register Address: 62 (Decimal); 3E (Hex)
BIT
NAME
FUNCTION
[7:0]
ACCEL_YOUT[7:0]
Low byte of accelerometer y-axis data.
12.39 REGISTER 63 – HIGH BYTE OF ACCELEROMETER Z-AXIS DATA
Register Name: ACCEL_ZOUT_H
Register Type: READ
Register Address: 63 (Decimal); 3F (Hex)
BIT
NAME
FUNCTION
[7:0]
ACCEL_ZOUT[15:8]
High byte of accelerometer z-axis data.
12.40 REGISTER 64 – LOW BYTE OF ACCELEROMETER Z-AXIS DATA
Register Name: ACCEL_ZOUT_L
Register Type: READ
Register Address: 64 (Decimal); 40 (Hex)
BIT
NAME
FUNCTION
[7:0]
ACCEL_ZOUT[7:0]
Low byte of accelerometer z-axis data.
12.41 REGISTER 65 – HIGH BYTE OF TEMPERATURE SENSOR DATA
Register Name: TEMP_OUT_H
Register Type: READ
Register Address: 65 (Decimal); 41 (Hex)
BIT
NAME
FUNCTION
[7:0]
TEMP_OUT[15:8]
High byte of the temperature sensor output.
