64M DDR SDRAM

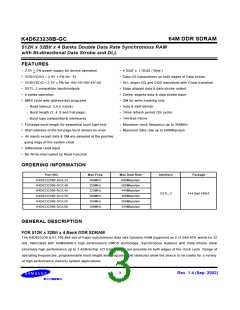

K4D623238B-GC
FUNCTIONAL DESCRIPTION
• Power-Up Sequence
DDR SDRAMs must be powered up and initialized in a predefined manner to prevent undefined operations.
1. Apply power and keep CKE at low state (All other inputs may be undefined)
- Apply VDD before VDDQ .
- Apply VDDQ before VREF & VTT
2. Start clock and maintain stable condition for minimum 200us.
3. The minimum of 200us after stable power and clock(CK,CK), apply NOP and take CKE to be high .
4. Issue precharge command for all banks of the device.
5. Issue a EMRS command to enable DLL
*1
6. Issue a MRS command to reset DLL. The additional 200 clock cycles are required to lock the DLL.
*1,2 7. Issue precharge command for all banks of the device.
8. Issue at least 2 or more auto-refresh commands.
9. Issue a mode register set command with A8 to low to initialize the mode register.
*1 The additional 200cycles of clock input is required to lock the DLL after enabling DLL.
*2 Sequence of 6&7 is regardless of the order.
Power up & Initialization Sequence
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
CK,CK
tRP
2 Clock min.
tRFC
tRFC
2 Clock min.
tRP
2 Clock min.
Command
precharge
MRS
DLL Reset
precharge
ALL Banks
2nd Auto
Refresh
1st Auto
Refresh
Mode
Register Set
A n y
Command
E M R S
ALL Banks
200 Clock min.
Inputs must be
stable for 200us
- 7 -
Rev. 1.4 (Sep. 2002)
