Pre lim in a ry

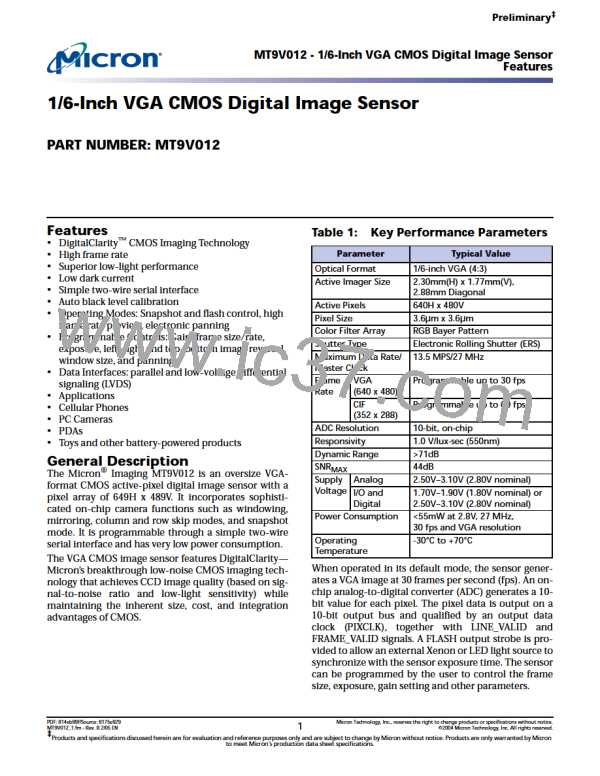

MT9V012 - 1/6-In ch VGA CMOS Dig it a l Im a g e Se n so r

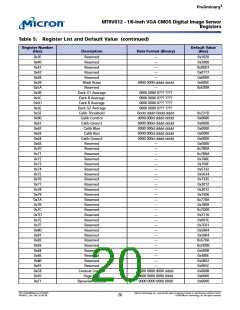

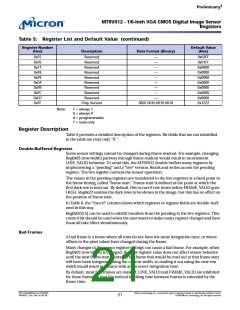

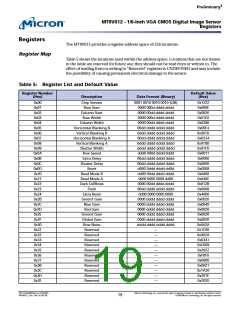

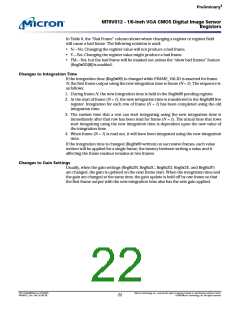

Re g ist e rs

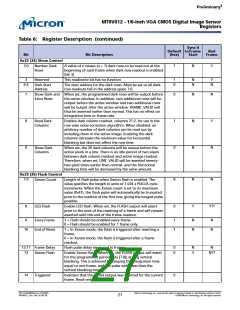

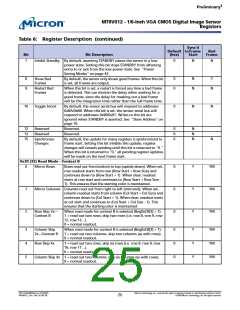

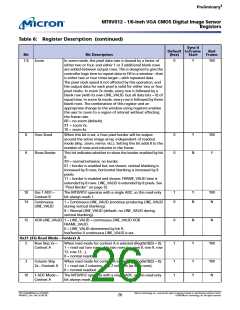

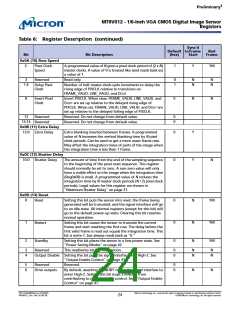

Ta b le 6: Re g ist e r De scrip t io n
Syn c’d
De fa u lt t o Fra m e
Ba d
Fra m e
Bit
Bit De scrip t io n
(h e x)
St a rt
0x00/0xFF (0/255) Ch ip Ve rsio n
15:0
0x01 (1) Ro w St a rt
8:0
1222
12
N
Y
N
Chip Version
Chip version. Read-only.
YM
Row Start
The first row to be read out (not counting any dark rows
that may be read). To move the image window, set this
register to the starting “Y” value. Setting a value less than
eight is not recommended, as the dark rows should be read
using Reg0x22.
0x02 (2) Co lu m n St a rt
9:0
26
Y
YM
Column Start
The first column to be read out (not counting dark columns
that may be read). To move the image window, set this
register to the starting “X” value. Setting a value below
Reg0x18 is not recommended, as readout of dark columns
should be controlled by Reg0x22.
0x03 (3) Ro w Wid t h
8:0
1E0
280
F4
Y
Y
Y
YM
YM
YM
Row Width
Number of rows in the image to be read out (not counting
any dark rows or border rows that may be read). The
minimum supported value is 2.
0x04 (4) Co lu m n Wid t h
9:0
Column Width
Number of columns in the image to be read out (not
counting any dark columns or border columns that may be
read). The minimum supported value is 9.
0x05 (5) Ho rizo n t a l Bla n kin g B
10:0
Horizontal
Blanking B
Number of blank columns in a row when context B is
selected (Reg0xC8[0] = 1). The extra columns are added at
the beginning of a row. See “Minimum Horizontal
Blanking” on page 35.
0x06 (6) Ve rt ica l Bla n kin g B
14:0
1D
Y
N
Vertical
Blanking B
Number of blank rows in a frame when context B is selected
(Reg0xC8[1] = 1). The minimum supported value is (6 +
Reg0x22[2:0]). The actual vertical blanking time can be
controlled by the shutter width (Reg0x9). See “Output Data
Timing (Default Mode)” on page 11.
0x07 (7) Ho rizo n t a l Bla n kin g A
10:0
234
Y
Y
YM
N
Horizontal
Blanking A
Number of blank columns in a row when context A is
selected (Reg0xC8[0] = 0). The extra columns are added at
the beginning of a row. See “Minimum Horizontal
Blanking” on page 35.
0x08 (8) Ve rt ica l Bla n kin g A
14:0
10D
Vertical
Blanking A
Number of blank rows in a frame when context A is chosen
(Reg0xC8[1] = 1). The minimum supported value is (6 +
Reg0x22[2:0]). The actual vertical blanking time can be
controlled by the shutter width (Reg0x9). See “Output Data
Timing (Default Mode)” on page 11.
0x09 (9) Sh u t t e r Wid t h
15:0
1FD
Y
N
Shutter Width
Integration time in number of rows. The integration time is
also influenced by the shutter delay (Reg0x0C) and the
overhead time.
PDF: 814eb99f/Source: 8175e929
MT9V012_2.fm - Rev. B 2/05 EN
