Micro-D Filtered
Series M13 - How to Order
Amphenol
Aerospace
.050" contact spacing
Example:
M13-21S6APC11-000
Description: metal shell size 21 receptacle, nickel finish, 18" stranded wires
per M22759/11, jackposts only, C-filter value 1000 pF (no deviations)
M13 21 p 1 2 p T C 1 1 - 000
Deꢊiation
Connector Series
XXX (000 is standard part)
M13 = Filtered Micro-D
Plating
Connector Siꢉe (numꢈer oꢇ contacts)
1 = Electroless Nickel
2 = Tin
09, 15, 21, 25, 31 and 37
3 = Cadmium (Clear Chromate)
4 = Gold
Connector Type
P = Plug (pin)
5 = Zn Ni
S = Receptacle (socket)
filter value ( pf +100%/-0%)
A = 200
b = 400
C = 800
1 = 1000
Termination Type
1 = vertical PCB "BS"
2 = vertical PCB "C6"
4 = right angle PCB "CBR"
5 = solid wire straight
6 = stranded wire
2 = 2000
4 = 4000
8 = 8000
wire / ꢅead ꢅength (inches)
T = 10,000
H = 16,000
0 = MIXED CAP
1 = .109 +/- .015
2 = .140 +/- .015
3 = .172 +/- .015
4 = .250 +/- .015
filter Type
P = Pi-Filter
C = C-Filter
0 = non-filtered equivalent part
for Termination Type 6 (inches +1.00/-0.00):
A = 18.00 per M22759/11-26 (mil-std-681, system 1)
b = 36.00 per M22759/11-26 (mil-std-681, system 1)
C = 72.00 per M22759/11-26 (mil-std-681, system 1)
ꢀnsert ꢂption
T = Threaded Insert (PCB terminations only)
Omit if not used
Material & Finishes
Connector Shell:
Insulator:
Aluminum Alloy
Polyphenyl Sulfide (PPS)
Seals:
Silicone Rubber or Equivalent
Beryllium Copper with 50 micro inches gold over nickel plating
Copper alloy with 50 micro inches gold over nickel plating
300 series stainless steel
Mounting Hardꢆare
Pin Contact:
Socket Contact:
Hardware:
A = .093" diameter mounting hole
b = .125" diameter mounting hole
ꢅ = Jackpost (loose)
PCB Terminals:
Capacitors:
Inductors:
Gold plated copper alloy, solder dipped
Planar ceramic array
P = Jackpost (fixed)
Ferrite
EMI Ground Spring: Beryllium Copper
Encapsulant:
Thermally conductive epoxy
Features
Quality Conformance Inspection
Amphenol M13 connector series is a range of filtered
MIL-DTL-83513 Micro-D products for military and
aerospace applications. These extremely small filter
connectors employ monolithic planar capacitors in a
rugged, high density package ideally suited for applications
where space and weight is restricted. Available in a variety
of filter types and mechanical configurations including
wired harnesses and PCB terminations. The M13 series
are fully intermateable with all standard MIL-DTL-83513
connectors and meet the applicable performance and
environmental requirements.
Series M13 connectors have been extensively qualified per the
requirements of MIL-DTL-83513. All products shipped have the
following inspection tests:
• 100% visual and mechanical inspections
• 100% capacitance, DWV, insulation resistance and dissipation
factor testing
• Sample insertion loss testing (AQL 1.0%)
For high reliability applications, the following inspection tests
or certifications are also available:
• Thermal shock • Elevated temperature voltage conditioning
• Elevated temperature insulation resistance and capacitance
• Outgassing per JSC-SPR-0022 for space-borne applications
• Baseline and single lot date code manufacturing
• Other tests as required (consult the Amphenol Aerospace)

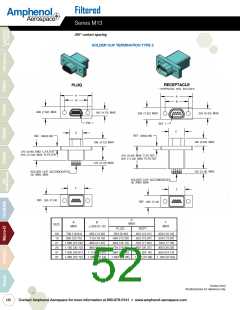

Inches (mm)
All dimensions for reference only
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
