W89C840F
C28
C2C
C30
C34
C38
C3C
C40
C44
C48
C4c
C50
CBROA
CGTP
00000000H
00000000H
00000000H
00000000H
00000000H
00000000H
00000000H
00000000H
00000000H
00000000H
00000000H
00000000H
00000000H
00000000H
00000000H
not affected
not affected
not affected
not affected
not affected
00000000H
00000000H
CRDAR
CRBAR
CMA0
CMA1
CPA0
CPA1
CBRCR
CTDAR
CTBAR
The detail function and operation for each register in the W89C840F will be described in the
following paragraph. There are total 21 registers to be described in register code order in this paragraph.

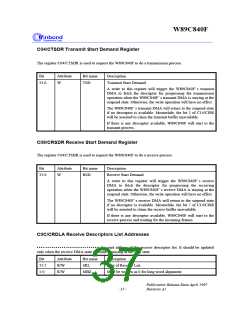

The full name of these registers are C00/CBCR Bus Control Register, C04/CTSDR Transmit Start
Demand Register, C08/CRSDR Receive Start Demand Register, C0C/CRDLA Receive Descriptors List

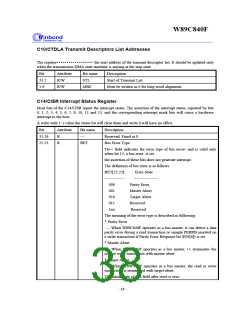

Addresses, C10/CTDLA Transmit Descriptors List Addresses, C14/CISR Interrupt Status Register,
C18/CNCR Network Configuration Register, C1C/CIMR Interrupt Mask Register, C20/CFDCR Frame
Discarded Counter Register, C24/CMIIR MII Management and ROM Register, C28/CBROA Boot ROM
Offset Address Register, C2C/CGTR General Timer Register, C30/CRDAR Current Receive Descriptor
Address Register, C34/CRBAR Current Receive Buffer Address Register, C38/CMA0 Multicast Address
Register 0, C3C/CMA1 Multicast Address Register 1, C40/CPA0 Physical Address Register 0, C44/CPA1
Physical Address Register 1, C48/CBRCR Boot ROM Size Configuration Register, C4C/CTDAR Current
Transmit Descriptor Address Register and C50/CTBAR Current Transmit Buffer Address Register.

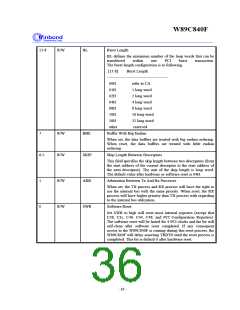

C00/CBCR Bus Control Register:
This register defines the configur at i on of bus mast er , i n whi ch t he f unct i ons i ncl ude
the wait state control, the endian mode control of the descriptor, cache alignment control, burst length
control, descriptor skip length and the internal bus access priority. In addition to the bus master control, the
software reset will be performed after programming a logic 1 to the software reset bit of C00/CBCR. Before
writing data to the C00/CBCR, the transmit and receive processes must be stopped. Otherwise the current
transmit or receive operation will not be completed correctly.
