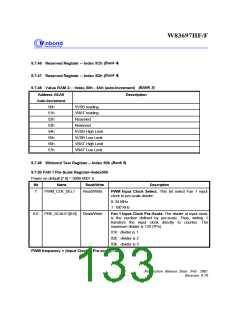

W83697HF/F
9.7.37 SMI# Mask Register 3 -- Index 51h (BANK 4)
Register Location:
Power on Default Value 00h
Attribute:
51h
Read/Write
8 bits
Size:
7
6
5
4
3
2
1
0
5VSB
VBAT
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Bit 7-2: Reserved.
SMI
Bit 1: A one disables the corresponding interrupt status bit for
interrupt.
Bit 0: A one disables the corresponding interrupt status bit for SMI interrupt.
Bank 4
9.7.38 Reserved Register -- Index 52h (
)
Bank 4
9.7.39 BEEP Control Register 3-- Index 53h (
)
Register Location:
Power on Default Value 00h
Attribute:
53h
Read/Write
8 bits
Size:
7
6
5
4
3
2
1
0
EN_5VSB_BP
EN_VBAT_BP
Reserved
Reserved
Reserved
EN_USER_BP
Reserved
Reserved
Bit 7-6: Reserved.
Bit 5: User define BEEP output function. Write 1, the BEEP is always active. Write 0, this function is
inactive. (Default 0)
Bit 4-2: Reserved.
Bit 1: Enable BEEP output from VBAT. Write 1, enable BEEP output, which is default value.
Bit 0: Enable BEEP Output from 5VSB. Write 1, enable BEEP output, which is default value.
Publication Release Date: Feb. 2002
- 120 -
Revision 0.70
