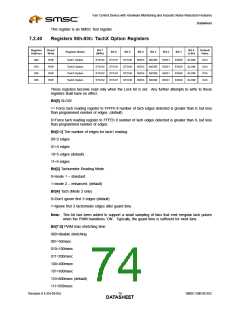

Fan Control Device with Hardware Monitoring and Acoustic Noise Reduction Features
Datasheet
Bit[3] TRDY: Temperature Reading Ready. This bit indicates that the temperature reading registers
have valid values. This bit is used after writing the start bit to ‘1’. 0= not valid, 1=valid.
Bit[4] SUREN: Spin-up reduction enable. This bit enables the reduction of the spin-up time based on
feedback from all fan tachometers associated with each PWM. 0=disable, 1=enable (default)
Bit[5] SMSC Reserved
This is an SMSC Reserved bit. Writing this bit to a value different than the default value may cause
unwanted results.
Bit[6] SMSC Reserved
This is an SMSC Reserved bit. Writing this bit to a value different than the default value may cause
unwanted results.
Bit[7] Initialization
Setting the INIT bit to ‘1’ performs a soft reset. This bit is self-clearing. Soft Reset sets all the registers
except the Reading Registers to their default values.
7.2.30
Register 80h: Interrupt Enable 2 Register
Register
Address
Read/
Write
Bit 7
Bit 0
Default
Value
Register Name
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
(MSb)
(LSb)
80h
R/W
Interrupt Enable 2 (Fan
Tachs)
RES
RES
RES
TACH4
TACH3
TACH2
TACH1
TACH
1Eh
These registers become read only when the Lock bit is set. Any further attempts to write to these
registers shall have no effect.
This register is used to enable individual fan tach error events to set the corresponding status bits in
the interrupt status registers. This register also contains the group fan tach enable bit (Bit[0] TACH),
which is used to enable fan tach events to force the interrupt pin (INT#) low if interrupts are enabled
(see Bit[2] INTEN of the Special Function register at offset 7Ch).
This register contains the following bits:
Bit[0] TACH (Group TACH Enable)
0=Out-of-limit tachometer readings do not affect the state of the INT# pin (default)
1=Enable out-of-limit tachometer readings to make the INT# pin active low
Bit[1] Fan Tach 1 Event Enable
Bit[2] Fan Tach 2 Event Enable
Bit[3] Fan Tach 3 Event Enable
Bit[4] Fan Tach 4 Event Enable
Bit[5] Reserved
Bit[6] Reserved
Bit[7] Reserved
The individual fan tach error event bits are defined as follows:
0=disable
1=enable.
Revision 0.4 (04-05-05)
SMSC EMC6D102
DATA7S0HEET
