    M38586GE-XXXSP 参数 Datasheet PDF下载

    M38586GE-XXXSP图片预览
    型号： M38586GE-XXXSP
    PDF下载： 下载PDF文件 查看货源
    内容描述： 单片8位CMOS微机 [SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER]
    分类和应用： 计算机
    文件页数/大小： 77 页 / 815 K
    品牌： RENESAS [ RENESAS TECHNOLOGY CORP ]

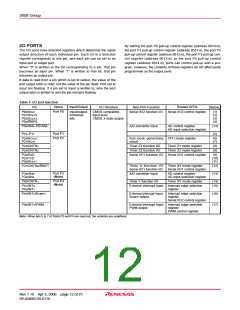

     浏览型号M38586GE-XXXSP的Datasheet PDF文件第12页浏览型号M38586GE-XXXSP的Datasheet PDF文件第13页浏览型号M38586GE-XXXSP的Datasheet PDF文件第14页浏览型号M38586GE-XXXSP的Datasheet PDF文件第15页浏览型号M38586GE-XXXSP的Datasheet PDF文件第17页浏览型号M38586GE-XXXSP的Datasheet PDF文件第18页浏览型号M38586GE-XXXSP的Datasheet PDF文件第19页浏览型号M38586GE-XXXSP的Datasheet PDF文件第20页
    3858 Group
    b7
    b0
    b7
    b0
    Port P0 pull-up control register
    (PULL0: address 001016
    Port P1 pull-up control register
    (PULL1: address 001116
    )
    )
    P00
    pull-up control bit
    P10 pull-up control bit
    0: No pull-up
    1: Pull-up
    0: No pull-up
    1: Pull-up
    P01
    pull-up control bit
    P11 pull-up control bit
    0: No pull-up
    1: Pull-up
    0: No pull-up
    1: Pull-up
    P02
    pull-up control bit
    P12 pull-up control bit
    0: No pull-up
    1: Pull-up
    0: No pull-up
    1: Pull-up
    P03
    pull-up control bit
    P13 pull-up control bit
    0: No pull-up
    1: Pull-up
    0: No pull-up
    1: Pull-up
    P04
    pull-up control bit
    P14 pull-up control bit
    0: No pull-up
    1: Pull-up
    0: No pull-up
    1: Pull-up
    P05
    pull-up control bit
    P15 pull-up control bit
    0: No pull-up
    1: Pull-up
    0: No pull-up
    1: Pull-up
    P06
    pull-up control bit
    P16 pull-up control bit
    0: No pull-up
    1: Pull-up
    0: No pull-up
    1: Pull-up
    P07
    pull-up control bit
    P17 pull-up control bit
    0: No pull-up
    1: Pull-up
    0: No pull-up
    1: Pull-up
    Note: Pull-up control is valid when the corresponding bit of
    the port direction register is “0” (input).
    Note: Pull-up control is valid when the corresponding bit of
    the port direction register is “0” (input).
    When that bit is “1” (output), pull-up cannot be set to
    the port of which pull-up is selected.
    When that bit is “1” (output), pull-up cannot be set to
    the port of which pull-up is selected.
    b7
    b0
    Port P2 pull-up control register
    (PULL2: address 001216
    )
    P20 pull-up control bit
    0: No pull-up
    1: Pull-up
    P21 pull-up control bit
    0: No pull-up
    1: Pull-up
    P22 pull-up control bit
    0: No pull-up
    1: Pull-up
    P23 pull-up control bit
    0: No pull-up
    1: Pull-up
    P24 pull-up control bit
    0: No pull-up
    1: Pull-up
    P25 pull-up control bit
    0: No pull-up
    1: Pull-up
    P26 pull-up control bit
    0: No pull-up
    1: Pull-up
    P27 pull-up control bit
    0: No pull-up
    1: Pull-up
    Note: Pull-up control is valid when the corresponding bit of
    the port direction register is “0” (input).
    When that bit is “1” (output), pull-up cannot be set to
    the port of which pull-up is selected.
    Fig. 13 Structure of port registers (1)
    Rev.1.10 Apr 3, 2006 page 16 of 75
    REJ03B0139-0110
