S/UNI®-8x155 ASSP Telecom Standard Product Data Sheet
Released

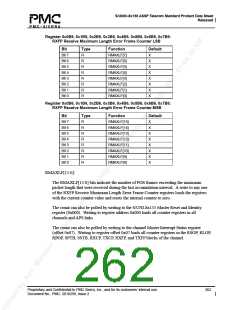

Register 0x0B3, 0x1B3, 0x2B3, 0x3B3, 0x4B3, 0x5B3, 0x6B3, 0x7B3:
RXFP Receive Minimum Length Error Frame Count LSB
Bit
Type
R
R
R
R
R
R
R
R
Function
RMINLF[7]
RMINLF[6]
RMINLF[5]
RMINLF[4]
RMINLF[3]
RMINLF[2]
RMINLF[1]
RMINLF[0]
Default
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
X
X
X
X
X
X
X
X
Register 0x0B4, 0x1B4, 0x2B4, 0x3B4, 0x4B4, 0x5B4, 0x6B4, 0x7B4:
RXFP Receive Minimum Length Error Frame Counter MSB
Bit
Type
R
R
R
R
R
R
R
R
Function
Default
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
RMINLF[15]
RMINLF[14]
RMINLF[13]
RMINLF[12]
RMINLF[11]
RMINLF[10]
RMINLF[9]
RMINLF[8]
X
X
X
X
X
X
X
X
RMINLF[15:0]:
The RMINLF[15:0] bits indicate the number of minimum packet length POS frames
received during the last accumulation interval. A write to any one of the RXFP Minimum
Length Error Frame Counter registers loads the registers with the current counter value and
resets the internal counter to zero.
The count can also be polled by writing to the S/UNI-8x155 Master Reset and Identity
register (0x000). Writing to register address 0x000 loads all counter registers in all
channels and APS links.
The count can also be polled by writing to the channel Master Interrupt Status register
(offset 0x07). Writing to register offset 0x07 loads all counter registers in the RSOP, RLOP,
RPOP, SPTB, SSTB, RXCP, TXCP, RXFP, and TXFP blocks of the channel.
