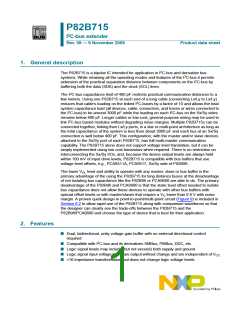

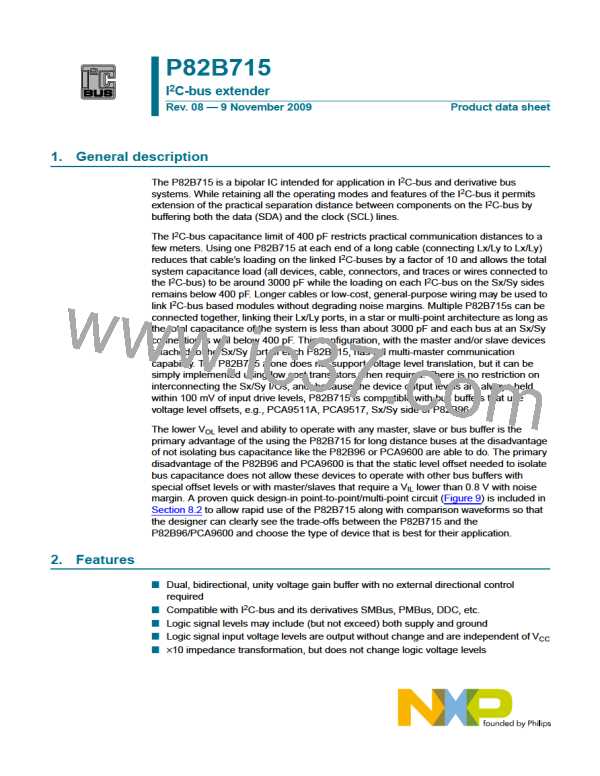

P82B715
NXP Semiconductors
I2C-bus extender
I Supply voltage range 3 V to 12 V
I Clock speeds to at least 100 kHz and 400 kHz when other system delays permit
I ESD protection exceeds 2500 V HBM per Mil. Std 883C-3015.7 and 400 V MM per
JESD22-A115 (I/Os have diodes to VCC and GND)
I Latch-up testing is done to JEDEC Standard JESD78 which exceeds 100 mA
3. Applications
I Increase the total connected capacitance of an I2C-bus system to around 3000 pF
I Drive I2C-bus signals over long cables to approximately 50 meters or 3000 pF
I Drives ×10 lower impedance bus wiring for improved noise immunity
I Multi-drop distribution of I2C-bus signals using low cost twisted-pair cables
I AdvancedTCA radial IPMB architecture
I Driving 30 mA Fm+ devices from standard 3 mA parts
4. Ordering information
Table 1.
Ordering information[1]
Type number
Package
Name
DIP8
Description
Version
P82B715PN
P82B715TD
plastic dual in-line package; 8 leads (300 mil)
SOT97-1
SO8
plastic small outline package; 8 leads; body width 3.9 mm SOT96-1
[1] For applications requiring lower voltage operation, or additional buffer performance, see application notes
AN255, “I2C/SMBus repeaters, hubs and expanders” and AN10710, “Features and applications of the
P82B715 I2C-bus extender”.
4.1 Ordering options
Table 2.
Ordering options
Type number
P82B715PN
P82B715TD
Topside mark
P82B715PN
P82B715
Temperature range
−40 °C to +85 °C
−40 °C to +85 °C

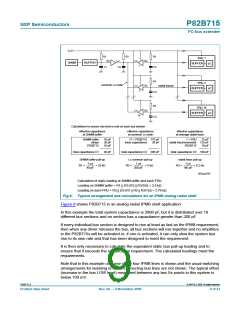

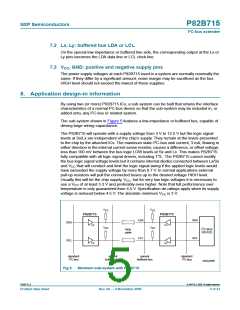

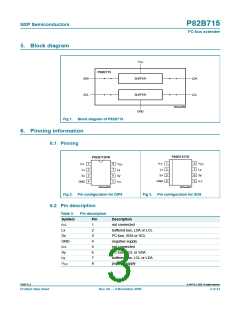

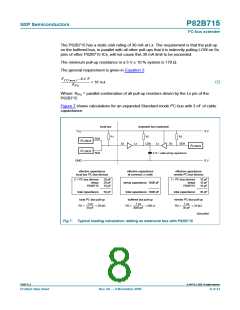

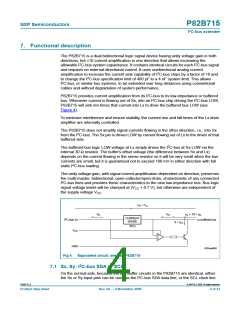

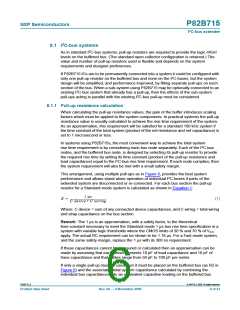

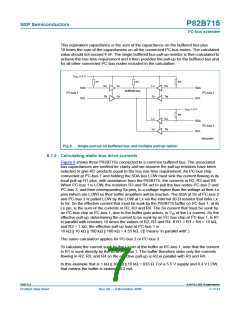

P82B715_8
