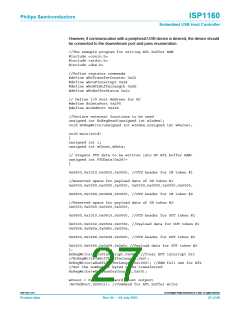

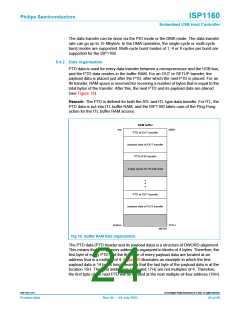

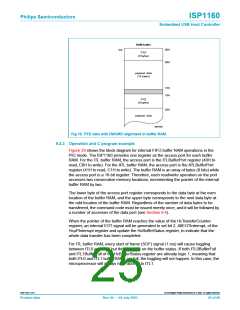

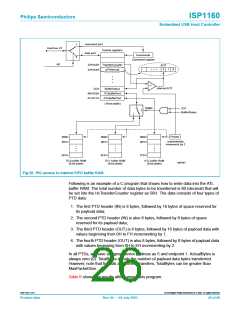

//write 80 (0x50) bytes of data into ATL buffer RAM
for (i=0;i<wCount;i++)
{
outport(HcDataPort,PTDData[i]);
};
//Check EOT interrupt bit
wData = HcRegRead(wHcuPInterrupt);
printf("\n HC Interrupt Status = %xH.\n",wData);
//Check Buffer status register
wData = HcRegRead(wHcBufferStatus);
printf("\n HC Buffer Status = %xH.\n",wData);
}
//
// Read HC 16-bit registers
//
unsigned int HcRegRead(unsigned int wIndex)
{ unsigned int wValue;
outport(HcCmdPort,wIndex & 0x7f);
wValue = inport(HcDataPort);
return(wValue);
}
//
// Write HC 16-bit registers
//
void HcRegWrite(unsigned int wIndex,unsigned int wValue)
{
outport(HcCmdPort,wIndex | 0x80);
outport(HcDataPort,wValue);
}
Table 6:
Run results of the C program example
Observed items
HC not initialized and not in HC initialized and in
Comments
USBOperational state
USBOperational state
HcµPInterrupt register
Bit 1 (ATLInt)
0
1
1
1
microprocessor must read ATL
transfer completed
Bit 2 (AllEOTInterrupt)
HcBufferStatus register
Bit 2 (ATLBufferFull)
Bit 5 (ATLBufferDone)
USB traffic on USB Bus
1
0
1
1
transfer completed
PTD data processed by HC
OUT packets can be seen
no
yes
9.5 HC operational model
Upon power up, the HCD sets up all operational registers (32-bit). The
FSLargestDataPacket field (bits 30 to 16) of the HcFmInterval register (0DH to read,
8DH to write) and the HcLSThreshold register (11H to read, 91H to write) determine
