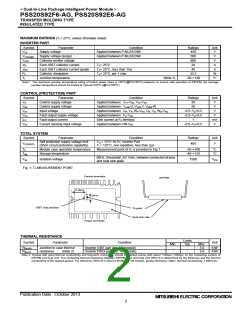

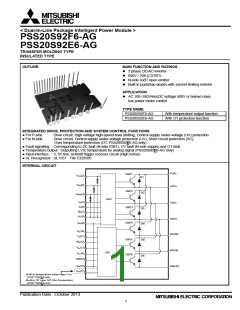

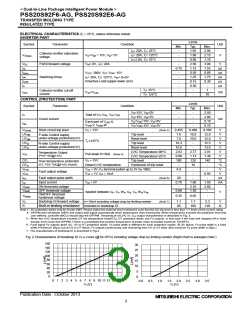

< Dual-In-Line Package Intelligent Power Module >
PSS20S92F6-AG, PSS20S92E6-AG
TRANSFER MOLDING TYPE
INSULATED TYPE
Fig. 3 Temperature of LVIC vs. VOT output characteristics
4.0
3.8
3.6
3.4
3.2
Max.
Typ.
Min.
3.0
2.91
2.8
2.77
2.63
2.6
2.4
2.2
2.0
1.8
1.6
60
70
80
90
100
110
120
LVIC temperature (°C)
Fig. 4 VOT output circuit
Inside LVIC
of DIPIPM
Temperature
Signal
VOT
VNC
MCU
Ref
5kΩ
(1) It is recommended to insert 5kΩ (5.1kΩ is recommended) pull down resistor for getting linear output characteristics at low temperature
below room temperature. When the pull down resistor is inserted between VOT and VNC(control GND), the extra circuit current, which is
calculated approximately by VOT output voltage divided by pull down resistance, flows as LVIC circuit current continuously. In the case of
using VOT for detecting high temperature over room temperature only, it is unnecessary to insert the pull down resistor.
(2) In the case of using VOT with low voltage controller like 3.3V MCU, VOT output might exceed control supply voltage 3.3V when
temperature rises excessively. If system uses low voltage controller, it is recommended to insert a clamp Di between control supply of
the controller and VOT output for preventing over voltage destruction.
(3) In the case of not using VOT, leave VOT output NC (No Connection).
Refer the application note for Super Mini DIPIPM Ver.5 series about the usage of VOT
.
