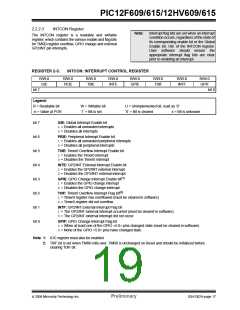

PIC12F609/615/12HV609/615
2.2.2.6
PCON Register
The Power Control (PCON) register (see Table 11-2)
contains flag bits to differentiate between a:
• Power-on Reset (POR)
• Brown-out Reset (BOR)
• Watchdog Timer Reset (WDT)
• External MCLR Reset
The PCON register also controls the software enable of
the BOR.
The PCON register bits are shown in Register 2-6.
REGISTER 2-6:
PCON: POWER CONTROL REGISTER
U-0
—
U-0
—
U-0
—
U-0
—
U-0
—
U-0
—
R/W-0
POR
R/W-0(1)
BOR
bit 7
bit 0
Legend:
R = Readable bit
-n = Value at POR
W = Writable bit
‘1’ = Bit is set
U = Unimplemented bit, read as ‘0’
‘0’ = Bit is cleared x = Bit is unknown
bit 7-2
bit 1
Unimplemented: Read as ‘0’
POR: Power-on Reset Status bit
1= No Power-on Reset occurred
0= A Power-on Reset occurred (must be set in software after a Power-on Reset occurs)
bit 0
BOR: Brown-out Reset Status bit
1= No Brown-out Reset occurred
0= A Brown-out Reset occurred (must be set in software after a Brown-out Reset occurs)
Note 1: Reads as ‘0’ if Brown-out Reset is disabled.
DS41302A-page 20
Preliminary
© 2006 Microchip Technology Inc.
