HS-3282
Transmitter Operation
Sample Interface Technique

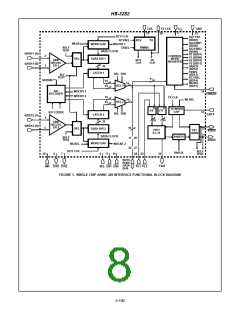

The Transmitter section consists of an 8-word deep by 31- From Figure 1, one can see that the Data Bus is time shared
Bit long FIFO Memory, Parity Generator, Transmitter Word between the Receiver and Transmitter. Therefore, bus
Gap Timing Circuit and Driver Circuit.
controlling must be synchronously shared between the
Receiver and the Transmitter.
• The FlFO Memory is organized in such a way that data
loaded in the input register is automatically transferred to Figure 2 shows the typical interface timing control of the
the output register for Serial Data Transmission. This ARlNC Chip for Receiving function and for Transmitting
eliminates a large amount of data managing time since the function. Timing sequence for loading the Transmitter FIFO
data need not be clocked from the input register to the Memory is shown in Timing Interval A. A transmitter Ready
output register. The FIFO input register is made up of two (TX/R) Flag signals the user that the Transmitter Memory is
sets of 16 D-type flip-flops, which are clocked by the two empty. The user then Enables the Transmitter Data, a 16-Bit
parallel load signals (PL1 and PL2). PL1 must always word, on the Data Bus and strobes the Transmitter with a
precede PL2. Multiple PL1’s may occur and data will be Parallel Load (PL1) Signal. The second part of the 32-Bit
written over. As soon as PL2 is received, data is word is similarly loaded into the Transmitter with PL2, which
transferred to the FIFO. The data from the Data Bus is also initiates data transfer to stack. This is continuous until
clocked into the D-type flip-flop on the positive going edge the Memory is full, which is eight 31-Bit words. The user
of the PL signals. If the FIFO memory is initially empty, or must keep track of the number of words loaded into the
the stack is not full, the data will be automatically Memory to ensure no data is written over by other data.
transferred down the Memory Stack and into the output During the time the user is loading the Transmitter, he does
register or to the last empty FIFO storage register. If the not have to service the Receiver, even if the Receiver flags
Transmitter Enable signal (ENTX) is not active, a Logic “0”, the user with the signal D/R1 that a valid received word is
the data remains at the output register. The FIFO Memory ready to be fetched. This is shown by the Timing interval B. If
has storage locations to hold eight 31-bit words. If the the user decides to obtain the received data before the
memory is full and the new data is again strobed with PL, Transmitter is completely loaded, he sets the two parallel
the old data at the input register is written over by the new load signals (PL1 and PL2) at a Logic “1” state, and strobes
data. Data will remain in the Memory until ENTX goes to a EN1 while the signal SEL is at a Logic “0” state. After the
Logic “1”. This activates the FIFO Clock and data is shifted negative edge of EN1, the first 16-Bit segment of the
out serially to the Transmitter Driver. Data may be loaded received word becomes valid on the Data Bus. At the
into the FIFO only while ENTX is inactive (low). It is not positive edge of EN1, the user should toggle the signal SEL
possible to write data into the FIFO while transmitting. to ready the Receiver for the second 16-Bit word. Strobing
WARNING: If PL1 or PL2 is applied while ENTX is high, the Receiver with EN1, the second time, enables the second
i.e., while transmitting, the FlFO may be disrupted such 16-Bit word and resets the Receiver Ready Flag D/R1. The
that it would require a MR (Master Reset) signal to user should now reset the signal SEL to a Logic “0” state to
recover.
ready the Receiver for another Read Cycle. During the time
period that the user is fetching the received words, he can
load the transmitter. This is done by interlacing the PL
signals with the EN signals as shown in the Timing Interval
B. Servicing the Receiver 2 is similar and is illustrated by
Timing interval C. Timing interval D shows the rest of the
Transmitter loading sequence and the beginning of the
transmission by switching the signal TX Enable to a Logic “1”
state. Timing interval E is the time it takes to transmit all data
from the FlFO Memory, either 288 Bit times or 232 Bit times.
• The Output Register of the FIFO is designed such that it
can shift out a word of 24 Bits long or 31 Bits long. This
word length is again controlled by the WLSEL bit. The TX
word Gap Timer Circuit also automatically inserts a gap
equivalent to 4-Bit Times between each word. This gives a
minimum requirement of 29-Bit time or 36-Bit time for each
word transmission. Assuming the signal, ENTX, remains
at a Logic “1”, a transfer to stack signal is generated to
transfer the data down the Memory Stack one position.
This action is continued until the last word is shifted out of
the FIFO memory. At this time a Transmitter Ready (TX/R)
flag is generated to signal the user that the Transmitter is
ready to receive eight more data words. During transmis-
sion, if ENTX is taken low then high again, transmission
will cease leaving a portion of the word untransmitted, and
the data integrity of the FIFO will be destroyed.
Repeater Operation
This mode of operation allows a data word that has been
received to be placed directly in the FIFO for transmission. A
timing diagram is shown in Figure 7. A 32-bit word is used in
this example. The data word is shifted into the shift register
and the D/R flag goes low. A logic “0” is placed on the SEL
line and EN1 is strobed. This is the same as the normal
receiver operation and places half the data word (16 bits) on
the data bus. By strobing PL1 at the same time as EN1,
these 16 bits will be taken off the bus and placed in the
FIFO. SEL is brought back high and EN1 is strobed again for
the second 16 bits of the data word. Again by strobing PL2 at
the same time the second 16 bits will be placed in the FIFO.
The parity bit will have been stripped away leaving the 31-bit
data word in the FIFO ready for transmission as shown in
Figure 6.
• A Bit Counter is used to detect the last Bit shifted out of
the FIFO memory and appends the Parity Bit generated
by the Parity Generator. The Parity Generator has a
control signal, Parity Check (PARCK), which establishes
whether odd or even parity is used in the output data word.
PARCK set to a logic “0” will result in odd parity and when
set to a logic “1” will result in even parity.
5-189
