GMCH Register Description
Just the same as with PCI devices, each device is selected based on decoded address
information that is provided as a part of the address portion of Configuration Request
packets. A PCI Express device will decode all address information fields (bus, device,
function and extended address numbers) to provide access to the correct register.
To access this space (steps 1, 2, 3 are done only once by BIOS),
1. use the PCI compatible configuration mechanism to enable the PCI Express
enhanced configuration mechanism by writing 1 to bit 0 of the PCI
EXPRESS*XBAR register.
2. use the PCI compatible configuration mechanism to write an appropriate PCI
Express base address into the PCI EXPRESS*XBAR register
3. calculate the host address of the register you wish to set using (PCI Express
base + (bus number * 1 MB) + (device number * 32KB) + (function number *
4 KB) + (1 B * offset within the function) = host address)
4. use a memory write or memory read cycle to the calculated host address to
write or read that register.
4.4

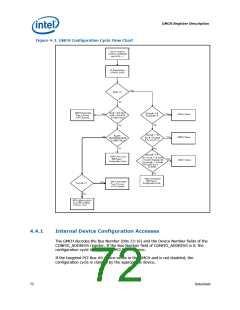

Routing Configuration Accesses
The GMCH supports two PCI related interfaces: DMI and PCI Express. The GMCH is
responsible for routing PCI and PCI Express configuration cycles to the appropriate
device that is an integrated part of the GMCH or to one of these two interfaces.
Configuration cycles to the ICH8 internal devices and Primary PCI (including
downstream devices) are routed to the ICH8 via DMI. Configuration cycles to both the
PCI Express Graphics PCI compatibility configuration space and the PCI Express
Graphics extended configuration space are routed to the PCI Express Graphics port
device or associated link.
