E

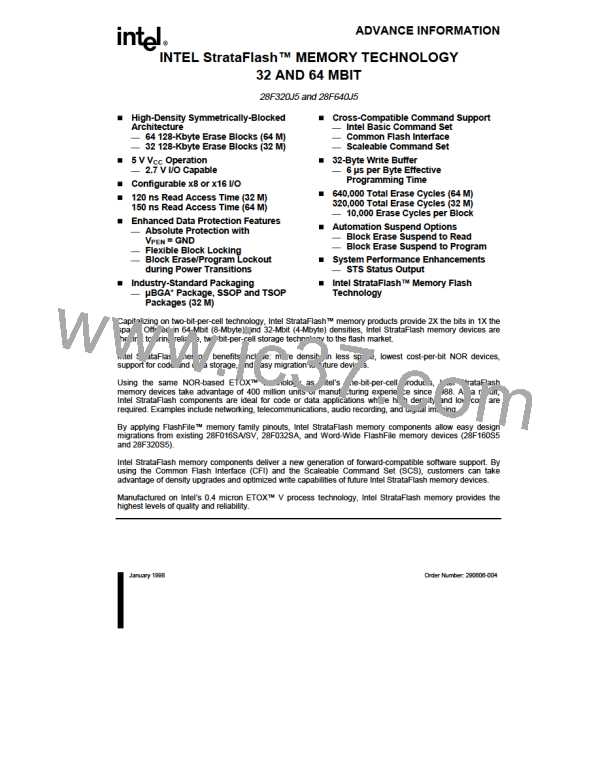

INTEL StrataFlash™ MEMORY TECHNOLOGY, 32 AND 64 MBIT
Individual block locking uses a combination of bits,

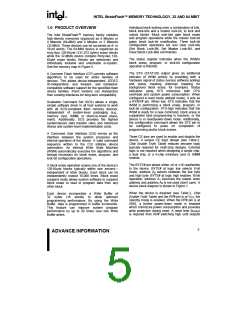

1.0 PRODUCT OVERVIEW
block lock-bits and a master lock-bit, to lock and
unlock blocks. Block lock-bits gate block erase
and program operations while the master lock-bit
gates block lock-bit modification. Three lock-bit
configuration operations set and clear lock-bits
(Set Block Lock-Bit, Set Master Lock-Bit, and
Clear Block Lock-Bits commands).
The Intel StrataFlash™ memory family contains
high-density memories organized as 8 Mbytes or
4 Mwords (64-Mbit) and 4 Mbytes or 2 Mwords
(32-Mbit). These devices can be accessed as 8- or
16-bit words. The 64-Mbit device is organized as
sixty-four 128-Kbyte (131,072 bytes) erase blocks
while the 32-Mbits device contains thirty-two 128-
Kbyte erase blocks. Blocks are selectively and
individually lockable and unlockable in-system.
See the memory map in Figure 5.
The status register indicates when the WSM’s
block erase, program, or lock-bit configuration
operation is finished.
The STS (STATUS) output gives an additional
indicator of WSM activity by providing both a
hardware signal of status (versus software polling)
and status masking (interrupt masking for
background block erase, for example). Status
indication using STS minimizes both CPU
overhead and system power consumption. When
configured in level mode (default mode), it acts as
a RY/BY# pin. When low, STS indicates that the
WSM is performing a block erase, program, or
lock-bit configuration. STS-high indicates that the
WSM is ready for a new command, block erase is
suspended (and programming is inactive), or the
device is in reset/power-down mode. Additionally,
the configuration command allows the STS pin to
be configured to pulse on completion of
programming and/or block erases.
A Common Flash Interface (CFI) permits software
algorithms to be used for entire families of
devices. This allows device-independent, JEDEC
ID-independent, and forward- and backward-
compatible software support for the specified flash
device families. Flash vendors can standardize
their existing interfaces for long-term compatibility.
Scaleable Command Set (SCS) allows a single,
simple software driver in all host systems to work
with all SCS-compliant flash memory devices,
independent of system-level packaging (e.g.,
memory card, SIMM, or direct-to-board place-
ment). Additionally, SCS provides the highest
system/device data transfer rates and minimizes
device and system-level implementation costs.
A Command User Interface (CUI) serves as the
interface between the system processor and
internal operation of the device. A valid command
sequence written to the CUI initiates device
automation. An internal Write State Machine
(WSM) automatically executes the algorithms and
timings necessary for block erase, program, and
lock-bit configuration operations.
Three CE pins are used to enable and disable the
device. A unique CE logic design (see Table 2,
Chip Enable Truth Table) reduces decoder logic
typically required for multi-chip designs. External
logic is not required when designing a single chip,
a dual chip, or a 4-chip miniature card or SIMM
module.
The BYTE# pin allows either x8 or x16 read/writes
to the device. BYTE# at logic low selects 8-bit
mode; address A0 selects between the low byte
and high byte. BYTE# at logic high enables 16-bit
operation; address A1 becomes the lowest order
address and address A0 is not used (don’t care). A

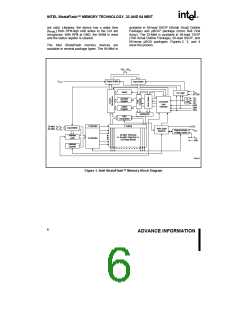

device block diagram is shown in Figure 1.
A block erase operation erases one of the device’s
128-Kbyte blocks typically within one second—
independent of other blocks. Each block can be
independently erased 10,000 times. Block erase
suspend mode allows system software to suspend
block erase to read or program data from any
other block.
When the device is disabled (see Table 2, Chip
Enable Truth Table) and the RP# pin is at VCC, the
standby mode is enabled. When the RP# pin is at
GND, a further power-down mode is enabled
which minimizes power consumption and provides
Each device incorporates
a Write Buffer of
32 bytes (16 words) to allow optimum
programming performance. By using the Write
Buffer, data is programmed in buffer increments.
This feature can improve system program
performance by up to 20 times over non Write
Buffer writes.
write protection during reset. A reset time (tPHQV
)
is required from RP# switching high until outputs
5
ADVANCE INFORMATION
