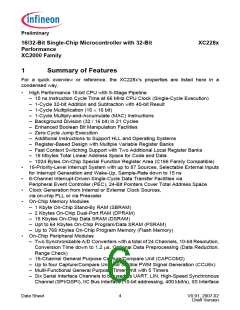

The XC228x derivatives are high-performance members of the Infineon XC2000 Family
of full featured single-chip CMOS microcontrollers. These devices extend the
functionality and performance of the C166 Family in terms of instructions (MAC unit),
peripherals, and speed. They combine high CPU performance (up to 66 million
instructions per second) with high peripheral functionality and enhanced IO-capabilities.
Optimized peripherals can be adapted to the application’s requirements in a flexible way.
These derivatives also provide clock generation via PLL and internal or external clock
sources, and various on-chip memory modules such as program Flash, program RAM,
and data RAM.
