    TLD7002-16ES
    Datasheet

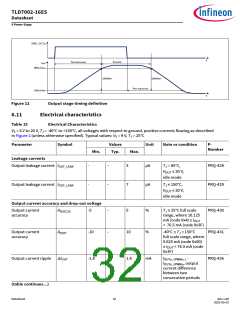

    6 Power Stage
    Figure 8
    Timing diagram and parameter for PWM pulse
    6.5
    Power shif
    The device can limit the internal power dissipation by balancing one load current branch with two power stages and
    an external resistance.
    The primary output channel OUTn and secondary output channel OUTn+1 provide the output current IOUT = IOUTn
    IOUTn+1, where IOUTn+1 linearly increases until VOUTPS_HI threshold is reached. If VOUTn > VOUTPS_HI then IOUT = IOUTn+1
    5.625 mA and IOUTn = 5.625 mA. The sum of IOUTn and IOUTn+1 remains constant while VOUTn rises.
    +
    -
    The external resistance is connected to the secondary output channel.
    The primary and secondary output channels are defined according to following table:
    Table 12
    Primary and secondary output channels
    Primary
    OUT0
    Secondary
    OUT1
    OUT2
    OUT3
    OUT8
    OUT9
    OUT10
    OUT11
    The power shif threshold VOUTPS_HI is programmable by a 2-bit OTP register with 4 options as shown below with an
    accuracy of a aVOUT_PS per configuration step.
    Table 13
    VOUTPS_HI configuration steps
    Configuration step
    VOUTPS_HI
    2 V
    0
    1
    2
    3
    3 V
    6 V
    10 V
    The power shif needs to be enabled via the OTP configuration.
    Datasheet
    28
    Rev.1.00
    2022-05-03
