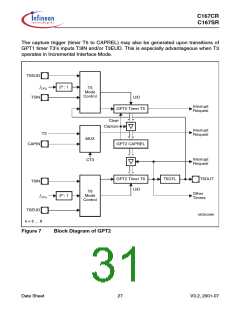

C167CR
C167SR
Table 5
Compare Modes (CAPCOM)
Compare Modes
Function
Mode 0
Interrupt-only compare mode;
several compare interrupts per timer period are possible
Mode 1
Mode 2
Mode 3
Pin toggles on each compare match;
several compare events per timer period are possible
Interrupt-only compare mode;
only one compare interrupt per timer period is generated
Pin set ‘1’ on match; pin reset ‘0’ on compare time overflow;
only one compare event per timer period is generated
Double
Two registers operate on one pin;
Register Mode
pin toggles on each compare match;
several compare events per timer period are possible.
Data Sheet
23
V3.2, 2001-07
