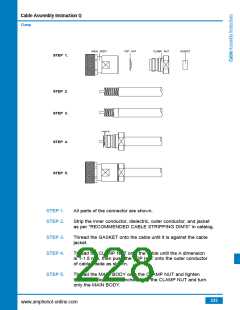

Cable Assembly Instruction M
Clamp-solder
STEP 1.
STEP 2.
All parts of the connector are shown.
Strip the cable inner conductor, dielectric, and jacket as per
“RECOMMENDED CABLE STRIPPING DIM’S” in catalog.
STEP 3.
Insert inner conductor into the CONTACT PIN and solder it
as shown. Then slide the HEX NUT, WASHER, and GASKET
onto cable one by one.
STEP 4.
STEP 5.
Place the TOP HAT over braid and push back against cable
jacket. Fold back braid wire as shown.
Insert cable and parts into the MAIN BODY, then screw the
HEX NUT until it is tightened.
221
www.amphenol-online.com
