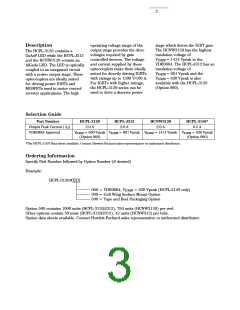

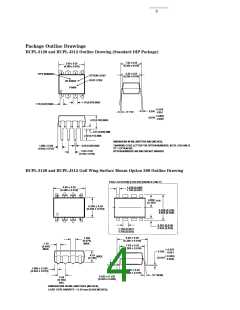

HCNW3120 Outline Drawing (8-Pin Wide Body Package)
11.00
(0.433)
11.15 ± 0.15
(0.442 ± 0.006)
MAX.
9.00 ± 0.15
(0.354 ± 0.006)
7
6
5
8
TYPE NUMBER
DATE CODE
HP
HCNWXXXX
YYWW
1
3
2
4
10.16 (0.400)
TYP.
1.55
(0.061)
MAX.
7° TYP.
+ 0.076
- 0.0051
0.254
+ 0.003)
- 0.002)
(0.010
5.10
(0.201)
MAX.
3.10 (0.122)
3.90 (0.154)
0.51 (0.021) MIN.
2.54 (0.100)
TYP.
1.78 ± 0.15
(0.070 ± 0.006)
0.40 (0.016)
0.56 (0.022)
DIMENSIONS IN MILLIMETERS (INCHES).
HCNW3120 Gull Wing Surface Mount Option 300 Outline Drawing
11.15 ± 0.15
(0.442 ± 0.006)
PAD LOCATION (FOR REFERENCE ONLY)
7
6
5
8
6.15
TYP.
(0.242)
9.00 ± 0.15
(0.354 ± 0.006)
12.30 ± 0.30
(0.484 ± 0.012)
1
3
2
4
0.9
(0.035)
1.3
(0.051)
12.30 ± 0.30
(0.484 ± 0.012)
1.55
(0.061)
MAX.
11.00
MAX.
(0.433)
4.00
MAX.
(0.158)
1.78 ± 0.15
(0.070 ± 0.006)
1.00 ± 0.15
(0.039 ± 0.006)
0.75 ± 0.25
(0.030 ± 0.010)
+ 0.076
- 0.0051
2.54
(0.100)
BSC
0.254
+ 0.003)
- 0.002)
(0.010
DIMENSIONS IN MILLIMETERS (INCHES).
7° NOM.
LEAD COPLANARITY = 0.10 mm (0.004 INCHES).
