Virtex-6 FPGA Data Sheet: DC and Switching Characteristics

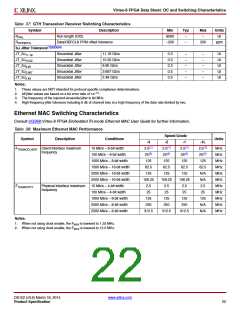

Switching Characteristics
All values represented in this data sheet are based on these
speed specifications: v1.17 for -3, -2, and -1; and v1.10 for
-1L. Switching characteristics are specified on a per-speed-
grade basis and can be designated as Advance,
Preliminary, or Production. Each designation is defined as
follows:
Since individual family members are produced at different
times, the migration from one category to another depends
completely on the status of the fabrication process for each
device.
Table 42 correlates the current status of each Virtex-6
device on a per speed grade basis.
Advance
Table 42: Virtex-6 Device Speed Grade Designations
These specifications are based on simulations only and are
typically available soon after device design specifications
are frozen. Although speed grades with this designation are
considered relatively stable and conservative, some under-
reporting might still occur.
Speed Grade Designations
Device
Advance
Preliminary Production
-3, -2, -1, -1L
-3, -2, -1, -1L
-3, -2, -1, -1L
-3, -2, -1, -1L
-3, -2, -1, -1L
-2, -1, -1L
XC6VLX75T
XC6VLX130T
XC6VLX195T
XC6VLX240T
XC6VLX365T
XC6VLX550T
XC6VLX760
Preliminary
These specifications are based on complete ES
(engineering sample) silicon characterization. Devices and
speed grades with this designation are intended to give a
better indication of the expected performance of production
silicon. The probability of under-reporting delays is greatly
reduced as compared to Advance data.
-2, -1, -1L
XC6VSX315T
XC6VSX475T
XC6VHX250T
XC6VHX255T
XC6VHX380T
XC6VHX565T
XQ6VLX130T
XQ6VLX240T
XQ6VLX550T
XQ6VSX315T
XQ6VSX475T
-3, -2, -1, -1L
-2, -1, -1L
Production
These specifications are released once enough production
silicon of a particular device family member has been
characterized to provide full correlation between
specifications and devices over numerous production lots.
There is no under-reporting of delays, and customers
receive formal notification of any subsequent changes.
Typically, the slowest speed grades transition to Production
before faster speed grades.
-3, -2, -1
-3, -2, -1
-3, -2, -1
-2, -1
-2, -1, -1L
-2, -1, -1L
-1, -1L
All specifications are always representative of worst-case
supply voltage and junction temperature conditions.
-2, -1, -1L
-1, -1L
Testing of Switching Characteristics
All devices are 100% functionally tested. Internal timing parameters are derived from measuring internal test patterns. Listed
below are representative values.
For more specific, more precise, and worst-case guaranteed data, use the values reported by the static timing analyzer and
back-annotate to the simulation net list. Unless otherwise noted, values apply to all Virtex-6 devices.
