10-FU094PB017ME02-L620F36
datasheet

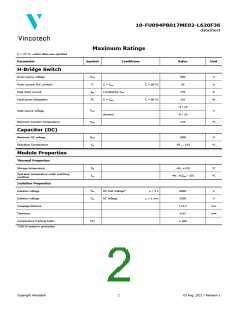

Maximum Ratings
Tj = 25 °C, unless otherwise specified
Parameter
Symbol
Conditions
Value
Unit
H-Bridge Switch
VDSS
Drain-source voltage
900
59
V
A
ID
Drain current (DC current)
Peak drain current
Tj = Tjmax
Ts = 80 °C
Ts = 80 °C
IDM
tp limited by Tjmax
Tj = Tjmax
270
A
Ptot
Total power dissipation
101
W
-4 / 15
-8 / 19
175
VGSS
Gate-source voltage
V
dynamic
Tjmax
Maximum Junction Temperature
°C
Capacitor (DC)
VMAX
Maximum DC voltage
1000
V
Top
Operation Temperature
-55 ... 125
°C
Module Properties
Thermal Properties
Tstg
Tjop
Storage temperature
-40…+125
°C
°C
Operation temperature under switching
condition
-40…+(Tjmax - 25)
Isolation Properties
Isolation voltage
Isolation voltage
Creepage distance
Clearance
Visol
Visol
DC Test Voltage*
AC Voltage
tp = 2 s
6000
2500
>12,7
9,52
V
tp = 1 min
V
mm
mm
Comparative Tracking Index
*100 % tested in production
CTI
≥ 200
Copyright Vincotech
2
03 Aug. 2021 / Revision 1
