表 7-116. DIM Register Field Descriptions (continued)
Bit
Field
Type
Reset
Description
5
12BIT
R/W
X
Enable register for 12-bit dimming resolution diagnostics
Load EEPROM data when reset
0h = Disabled
1h = Enabled
4
PSMEN
R/W
R/W
X
X
Enable register for digital power save mode
Load EEPROM data when reset
0h = Disabled
1h = Enabled
3-0
PWMFREQ
PWM dimming frequency setting register
Load EEPROM data when reset
0h = 200Hz
1h = 250Hz
2h = 300Hz
3h = 350Hz
4h = 400Hz
5h = 500Hz
6h = 600Hz
7h = 800Hz
8h = 1000Hz
9h = 1200Hz
Ah = 2000Hz
Bh = 4000Hz
Ch = 5900Hz
Dh = 7800Hz
Eh = 9600Hz
Fh = 20800Hz
7.6.3.16 DIM-R Register (Offset = 7Fh) [Reset = 00h]
DIM-R is shown in 图 7-113 and described in 表 7-117.
Return to the Summary Table.
图 7-113. DIM-R Register
7
6
5
4
3
2
1
0
RESERVED
R-0h
表 7-117. DIM-R Register Field Descriptions
Bit
7-0
Field
RESERVED
Type
Reset
Description
R
0h
Reserved
7.6.3.17 FSMAP0 Register (Offset = 80h) [Reset = X]
FSMAP0 is shown in 图 7-114 and described in 表 7-118.
Return to the Summary Table.
图 7-114. FSMAP0 Register
7
6
5
4
3
2
1
0
RESERVED
R-0h
FSOUTB1
R/W-X
FSOUTB0
R/W-X
RESERVED
R-0h
FSOUTA1
R/W-X
FSOUTA0
R/W-X

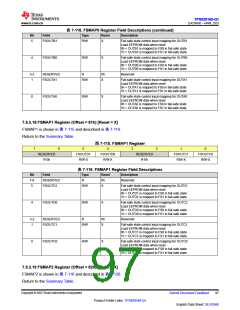

表 7-118. FSMAP0 Register Field Descriptions
Bit
7-6
Field
Type
Reset
Description
RESERVED
R
0h
Reserved
