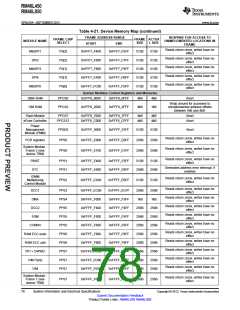

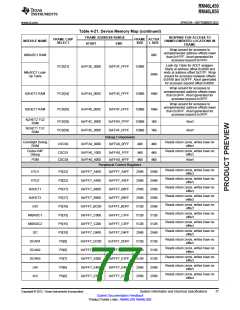

4.9 Device Memory Map
4.9.1 Memory Map Diagram
The figure below shows the device memory map.
0xFFFFFFFF
SYSTEM Modules
0xFFF80000
Peripherals - Frame 1
0xFF000000
0xFE000000
CRC
RESERVED
0xFCFFFFFF
0xFC000000
Peripherals - Frame 2
RESERVED
0xF07FFFFF
Flash Module Bus2 Interface
(Flash ECC, OTP and
EEPROM Emulation accesses)
0xF0000000
RESERVED
0x87FFFFFF
0x80000000
EMIF (64MB)
SDRAM
CS0
RESERVED
reserved
CS4
0x6FFFFFFF
0x60000000
0x6C000000
EMIF (32kB * 3)
0x68000000
CS3
CS2
Async RAM
0x64000000
RESERVED
0x2013FFFF
0x20000000
Flash (1.25MB) (Mirrored Image)
RESERVED
0x0842FFFF
0x08400000
RAM - ECC
RESERVED
0x0802FFFF
0x08000000
RAM (192KB)
RESERVED
0x0013FFFF
0x00000000
Flash (1.25MB)
Figure 4-10. Memory Map
The Flash memory is mirrored to support ECC logic testing. The base address of the mirrored Flash
image is 0x2000 0000.
