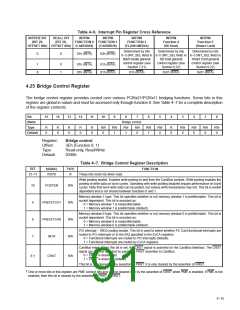

 浏览型号PCI6421的Datasheet PDF文件第83页浏览型号PCI6421的Datasheet PDF文件第84页浏览型号PCI6421的Datasheet PDF文件第85页浏览型号PCI6421的Datasheet PDF文件第86页浏览型号PCI6421的Datasheet PDF文件第88页浏览型号PCI6421的Datasheet PDF文件第89页浏览型号PCI6421的Datasheet PDF文件第90页浏览型号PCI6421的Datasheet PDF文件第91页
4.18 CardBus Latency Timer Register
The CardBus latency timer register is programmed by the host system to specify the latency timer for the
PCI6x21/PCI6x11 CardBus interface, in units of CCLK cycles. When the PCI6x21/PCI6x11 controller is a CardBus
initiator and asserts CFRAME, the CardBus latency timer begins counting. If the latency timer expires before the
PCI6x21/PCI6x11 transaction has terminated, then the PCI6x21/PCI6x11 controller terminates the transaction at the
end of the next data phase. A recommended minimum value for this register of 20h allows most transactions to be
completed.
Bit
7
6
5
4
3
2
1
0
Name
Type
Default
CardBus latency timer
RW
0
RW
0
RW
0
RW
0
RW
0
RW
0
RW
0
RW
0
Register:
Offset:
Type:
CardBus latency timer
1Bh (Functions 0, 1)
Read/Write
Default:
00h
4.19 CardBus Memory Base Registers 0, 1
These registers indicate the lower address of a PCI memory address range. They are used by the PCI6x21/PCI6x11
controller to determine when to forward a memory transaction to the CardBus bus, and likewise, when to forward a
CardBus cycle to PCI. Bits 31−12 of these registers are read/write and allow the memory base to be located anywhere
in the 32-bit PCI memory space on 4-Kbyte boundaries. Bits 11−0 are read-only and always return 0s. Writes to these
bits have no effect. Bits 8 and 9 of the bridge control register (PCI offset 3Eh, see Section 4.25) specify whether
memory windows 0 and 1 are prefetchable or nonprefetchable. The memory base register or the memory limit register
must be nonzero in order for the PCI6x21/PCI6x11 controller to claim any memory transactions through CardBus
memory windows (i.e., these windows by default are not enabled to pass the first 4 Kbytes of memory to CardBus).
Bit
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
Name
Type
Default
Memory base registers 0, 1
RW
0
RW
0
RW
0
RW
0
RW
0
RW
0
RW
0
RW
0
RW
0
RW
0
RW
0
RW
0
RW
0
RW
0
RW
0
RW
0
Bit
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
Name
Type
Default
Memory base registers 0, 1
RW
0
RW
0
RW
0
RW
0
R
0
R
0
R
0
R
0
R
0
R
0
R
0
R
0
R
0
R
0
R
0
R
0
Register:
Offset:
Type:
Memory base registers 0, 1
1Ch, 24h
Read-only, Read/Write
0000 0000h
Default:
4−11
