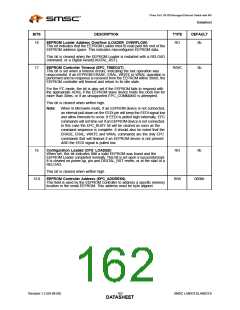

Three Port 10/100 Managed Ethernet Switch with MII
Datasheet
13.1.2.3
General Purpose I/O Interrupt Status and Enable Register (GPIO_INT_STS_EN)
Offset:
1E8h
Size:
32 bits
This read/write register contains the GPIO interrupt status bits.
Writing a 1 to any of the interrupt status bits acknowledges and clears the interrupt. If enabled, these
interrupt bits are cascaded into bit 12 (GPIO) of the Interrupt Status Register (INT_STS). Writing a 1
to any of the interrupt enable bits will enable the corresponding interrupt as a source. Status bits will
still reflect the status of the interrupt source regardless of whether the source is enabled as an interrupt
in this register. Bit 12 (GPIO_EN) of the Interrupt Enable Register (INT_EN) must also be set in order
for an actual system level interrupt to occur. Refer to Chapter 5, "System Interrupts," on page 52 for
additional information.
BITS
DESCRIPTION
TYPE
DEFAULT
31:28
27:16
RESERVED
RO
-
GPIO Interrupt Enable[11:0] (GPIO[11:0]_INT_EN)
When set, these bits enable the corresponding GPIO interrupt.
R/W
0h
Note:
The GPIO interrupts must also be enabled via bit 12 (GPIO_EN) of
the Interrupt Enable Register (INT_EN) in order to cause the
interrupt pin (IRQ) to be asserted.
15:12
11:0
RESERVED
RO
-
GPIO Interrupt[11:0] (GPIO[11:0]_INT)
R/WC
0h
These signals reflect the interrupt status as generated by the GPIOs. These
interrupts are configured through the General Purpose I/O Configuration
Register (GPIO_CFG).
Note:
As GPIO interrupts, GPIO inputs are level sensitive and must be
active greater than 40 nS to be recognized as interrupt inputs.
Revision 1.2 (04-08-08)
158
SMSC LAN9313/LAN9313i
DATASHEET
