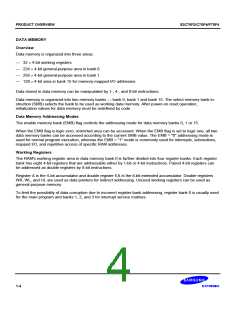

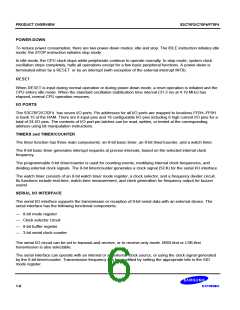

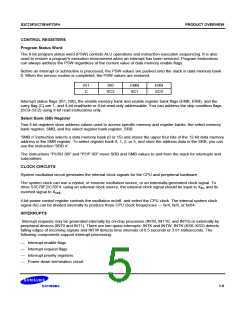

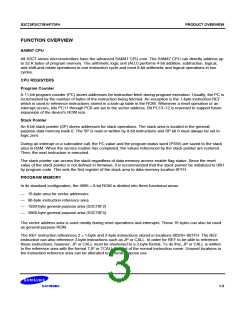

S3C70F2/C70F4/P70F4
PRODUCT OVERVIEW
BIT SEQUENTIAL CARRIER
The bit sequential carrier (BSC) is a 16-bit register that can be manipulated using 1-, 4-, and 8-bit instructions.
Using 1-bit indirect addressing, addresses and bit locations can be specified sequentially. In this way, programs
can process 16-bit data by moving the bit location sequentially and then incrementing or decrementing the value
of the L register. BSC data can also be manipulated using direct addressing.
COMPARATOR
The S3C70F2/C70F4 contains a 4-channel comparator which can be multiplexed to normal input port.
— Conversion time: 15.2 µs, 121.6 µs at 4.19 MHz
— Two operation modes:
Three channels for analog input and one channel for external reference voltage input
Four channels for analog input and internal reference voltage level
— 16-level internal reference voltage generator
— 150 mV accuracy for input voltage level difference detection (maximum)
— Comparator enable and disable
The comparison results are read from the 4-bit CMPREG register after the specified conversion time.
