R8C/13 Group
14. A/D Converter
14. A/D Converter
The A/D converter consists of one 10-bit successive approximation A/D converter circuit with a capacitive
coupling amplifier. The analog inputs share the pins with P00 to P07 and P10 to P13. Therefore, when
using these pins, make sure the corresponding port direction bits are set to 0(input mode).
When not using the A/D converter, set the VCUT bit to 0(Vref unconnected), so that no current will flow
from the VREF pin into the resistor ladder, helping to reduce the power consumption of the chip.
The result of A/D conversion is stored in the AD register.
Table 14.1 shows the performance of the A/D converter. Figure 14.1 shows a block diagram of the A/D

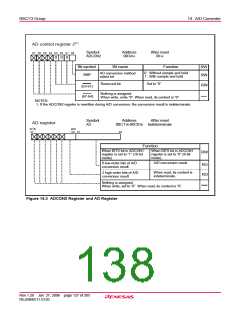

converter, and Figures 14.2 and 14.3 show the A/D converter-related registers.
Table 14.1 Performance of A/D converter
Item
Performance
Method of A/D conversion Successive approximation (capacitive coupling amplifier)
(1)
Analog input voltage
0V to Vref
(2)
Operating clock φAD
AVCC = 5V fAD, divide-by-2 of fAD, divide-by-4 of fAD
AVCC = 3V divide-by-2 of fAD, divide-by-4 of fAD
8-bit or 10-bit (selectable)
Resolution
Integral nonlinearity error AVcc = Vref = 5V
8-bit resolution ±2 LSB
10-bit resolution ±3 LSB
AVcc = Vref = 3.3 V
8-bit resolution ±2 LSB
10-bit resolution ±5 LSB
One-shot mode and repeat mode
12 pins (AN0 to AN11)
(3)
Operating modes
Analog input pins
A/D conversion start condition ADST bit in ADCON0 register is set to 1(A/D conversion starts)
Conversion speed per pin Without sample and hold function
8-bit resolution: 49
With sample and hold function
8-bit resolution: 28 AD cycles
φ
AD cycles
,
10-bit resolution: 59 AD cycles
φ
φ
,
10-bit resolution: 33 φAD cycles
NOTES:
1. Does not depend on use of sample and hold function.
2. The frequency of φAD must be 10 MHz or less.
When AVcc is less than 4.2V, φAD must be fAD/2 or less by dividing fAD.
Without sample and hold function, the φAD frequency should be 250 kHz or more.
With the sample and hold function, the φAD frequency should be 1 MHz or more.
3. In repeat mode, only 8-bit mode can be used.
Rev.1.20 Jan 27, 2006 page 124 of 205
REJ09B0111-0120
