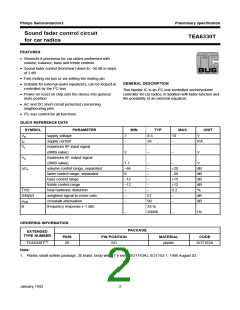

Philips Semiconductors
Preliminary specification
Sound fader control circuit
for car radios
TEA6330T
FEATURES
• Stereo/hi-fi processor for car radios performed with
volume, balance, bass and treble controls
• Sound fader control (front/rear) down to −30 dB in steps
of 2 dB
• Fast muting via bus or via setting the muting pin
GENERAL DESCRIPTION
• Suitable for external audio equalizers, can be looped-in
controlled by the I C-bus
2
2
This bipolar IC is an I C-bus controlled sound/volume
controller for car radios, in addition with fader function and
the possibility of an external equalizer.
• Power-on reset on chip sets the device into general
mute position
• AC and DC short-circuit protected concerning
neighbouring pins
2
• I C-bus control for all functions.
QUICK REFERENCE DATA
SYMBOL
PARAMETER
MIN.
TYP.
MAX.
UNIT
V
supply voltage
supply current
7
8.5
26
10
V
P
I
−
−
mA
P
V
maximum AF input signal
(RMS value)
i
2
−
−
V
V
maximum AF output signal
(RMS value)
o
1.1
−66
0
−
−
V
∆G
volume control range, separated
fader control range, separated
bass control range
−
+20
−30
+15
+12
0.2
−
dB
dB
dB
dB
%
v
−
−12
−12
−
−
treble control range
−
THD
total harmonic distortion
weighted signal-to-noise ratio
crosstalk attenuation
−
S/N(W)
−
67
90
dB
dB
α
−
−
CR
B
frequency response (−1 dB)
35 to
−
20000
−
Hz
ORDERING INFORMATION
PACKAGE
EXTENDED
TYPE NUMBER
PINS
20
PIN POSITION
MATERIAL
CODE
(1)
TEA6330T
Note
1. Plastic small outline package; 20 leads; body width 7.5 mm; (SOT163A); SOT163-1; 1996 August 02.
SO
plastic
SOT163A
January 1992
2
