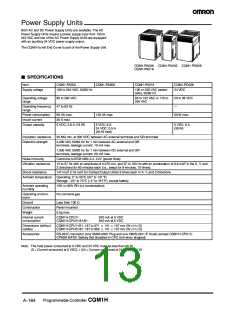

Power Supply Units
Both AC and DC Power Supply Units are available. The AC
Power Supply Units require a power supply input from 100 to
240 VAC and two of the AC Power Supply Units are equipped
with an auxiliary 24 VDC power supply output.
The CQM1H’s left End Cover is part of the Power Supply Unit.
CQM1-PA206 CQM1-PA203 CQM1-PD026
CQM1-PA216
J SPECIFICATIONS
Item
CQM1-PA203
CQM1-PA206
CQM1-PA216
CQM1-PD026
24 VDC
Supply voltage
100 to 240 VAC, 50/60 Hz
100 or 230 VAC (select-
able), 50/60 Hz
Operating voltage
range
85 to 264 VAC
47 to 63 Hz
85 to 132 VAC or 170 to
264 VAC
20 to 28 VDC
Operating frequency
range
—
Power consumption
Inrush current
60 VA max.
120 VA max.
50 W max.
30 A max.
Output capacity
5 VDC: 3.6 A (18 W)
5 VDC: 6 A
5 VDC: 6 A
(30 W)
24 VDC: 0.5 A
(30 W total)
Insulation resistance
Dielectric strength
20 MΩ min. at 500 VDC between AC external terminals and GR terminals
2,300 VAC 50/60 Hz for 1 min between AC external and GR
terminals, leakage current: 10 mA max.
1,000 VAC 50/60 Hz for 1 min between DC external and GR
terminals, leakage current: 20 mA max.
Noise immunity
Conforms to IEC61000-4-4, 2 kV (power lines)
2
10 to 57 Hz with an amplitude of 0.075 mm, and 57 to 150 Hz with an acceleration of 9.8 m/s in the X, Y, and
Vibration resistance
Z directions for 80 minutes each (i.e., swept for 8 minutes, 10 times).
2 2
147 m/s (118 m/s for Contact Output Units) 3 times each in X, Y, and Z directions
Shock resistance
Ambient temperature
Operating: 0° to 55°C (32° to 131°F)
Storage: --20° to 75°C (--4° to 167°F), except battery
Ambient operating
humidity
10% to 90% RH (no condensation)
Operating environ-
ment
No corrosive gas
Ground
Less than 100 Ω
Panel mounted
5 kg max.
Construction
Weight
Internal current
consumption
CQM1H-CPU11:
CQM1H-CPU21/51/61:
820 mA at 5 VDC
840 mA at 5 VDC
Dimensions (without
cables)
CQM1H-CPU11/21: 187 to 571 ¢ 110 ¢ 107 mm (W¢H¢D)
CQM1H-CPU51/61: 187 to 603 ¢ 110 ¢ 107 mm (W¢H¢D)
Accessories
RS-232C connector (one XM2A-0901 Plug and one XM2S-0911-E Hood) (except CQM1H-CPU11)
CPM2A-BAT01 Battery Set (installed in CPU Unit when shipped)
Note: The total power consumed at 5 VDC and 24 VDC must be less than 30 W.
(5 × Current consumed at 5 VDC) + (24 × Current consumed at 24 VDC) ≤ 30 W
A--164
