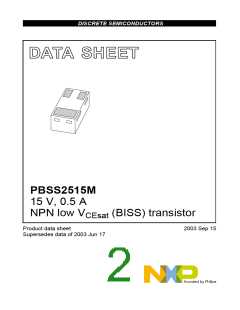

NXP Semiconductors
Product data sheet
15 V, 0.5 A
NPN low VCEsat (BISS) transistor
PBSS2515M

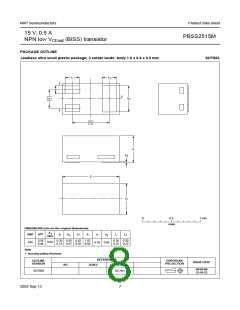

PACKAGE OUTLINE
Leadless ultra small plastic package; 3 solder lands; body 1.0 x 0.6 x 0.5 mm
SOT883
L
L
1
2
b
3
b
e
1
1
e
1
A
A
1
E
D
0
0.5
1 mm
scale
DIMENSIONS (mm are the original dimensions)
A
(1)
1
UNIT
A
b
b
D
E
e
e
L
L
1
1
1
max.
0.50
0.46
0.20 0.55 0.62 1.02
0.12 0.47 0.55 0.95
0.30 0.30
0.22 0.22
mm
0.03
0.35 0.65
Note
1. Including plating thickness
REFERENCES
JEDEC
OUTLINE
VERSION
EUROPEAN
PROJECTION
ISSUE DATE
IEC
JEITA
03-02-05
03-04-03
SOT883
SC-101
2003 Sep 15
7
