Pulse Width Modulator

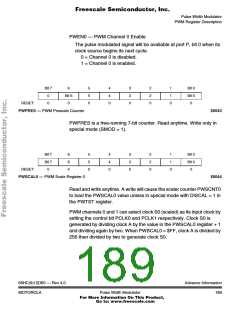

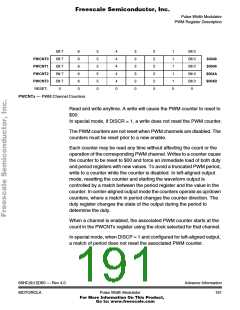

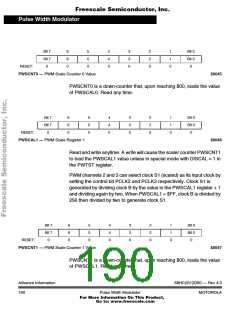

PWM Register Description
PCLK0 — PWM Channel 0 Clock Select
0 = Clock A is the clock source for channel 0.
1 = Clock S0 is the clock source for channel 0.
If a clock select is changed while a PWM signal is being generated, a
truncated or stretched pulse may occur during the transition.
The following four bits apply in left-aligned mode only:
PPOL3 — PWM Channel 3 Polarity
0 = Channel 3 output is low at the beginning of the period; high
when the duty count is reached.
1 = Channel 3 output is high at the beginning of the period; low
when the duty count is reached.
PPOL2 — PWM Channel 2 Polarity
0 = Channel 2 output is low at the beginning of the period; high
when the duty count is reached.
1 = Channel 2 output is high at the beginning of the period; low
when the duty count is reached.
PPOL1 — PWM Channel 1 Polarity
0 = Channel 1 output is low at the beginning of the period; high
when the duty count is reached.
1 = Channel 1 output is high at the beginning of the period; low
when the duty count is reached.
PPOL0 — PWM Channel 0 Polarity
0 = Channel 0 output is low at the beginning of the period; high
when the duty count is reached.
1 = Channel 0 output is high at the beginning of the period; low
when the duty count is reached.
Depending on the polarity bit, the duty registers may contain the count
of either the high time or the low time. If the polarity bit is zero and left
alignment is selected, the duty registers contain a count of the low time.
If the polarity bit is one, the duty registers contain a count of the high
time.
