KSZ8795CLX

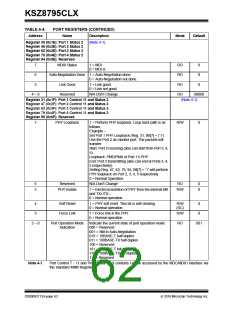

TABLE 4-4:
Address
1 0
PORT REGISTERS (CONTINUED)
Name
Description
Mode
Default
Interface Mode Select
These bits select the interface type and mode for
Switch Port 5 (SW5).
R/W
11
Note: This is for port 5 Port 5 Mode Select:
SW5-GMII/RGMII/MII/ 00 = MII
RMII
01 = RMII
10 = GMII
11 = RGMII.
Strap-in option: LED3[1:0]
00 = MII
01 = RMII
10 = GMII
11 = RGMII (Default)
Note: These pins have internal pull-ups.
Register 23 (0x17): Port 1 Control 7 (Note 4-1)
Register 39 (0x27): Port 2 Control 7
Register 55 (0x37): Port 3 Control 7
Register 71 (0x47): Port 4 Control 7
Register 87 (0x57): Reserved
7 6
5 4
Reserved
N/A Don’t Change.
RO
00
11
Advertised_Flow_Con- These bits indicate that the KSZ8795CLX has
R/W
trol _Capability
implemented both the optional MAC control sub-
layer and the PAUSE function as specified in IEEE
Clause 31 and Annex 31B for full duplex operation
independent of rate and medium.
00 = No pause
01 = Symmetric PAUSE
10 = Asymmetric PAUSE toward link partner
toward link partner
11 = Both Symmetric PAUSE and Asymmetric
PAUSE toward local devices
Bit[5] indicates that asymmetric PAUSE is sup-
ported. The value of Bit[4] when Bit[5] is set indi-
cates the direction of the PAUSE frames that are
supported for flow across the link. Asymmetric
PAUSE configuration results in independent
enabling of the PAUSE receive and PAUSE trans-
mit functions as defined by IEEE Annex 31B.
3
2
1
0
Advertised 100BT Full- 1 = Advertise 100BT full-duplex capability.
R/W
R/W
R/W
R/W
1
1
1
1
Duplex Capability
0 = Suppress 100BT full-duplex capability from
transmission to link partner.
Advertised 100BT Half- 1 = Advertise 100BT half-duplex capability.
Duplex Capability
0 = Suppress 100BT half-duplex capability from
transmission to link partner.
Advertised 10BT Full- 1 = Advertise 10BT full-duplex capability.
Duplex Capability
0 = Suppress 10BT full-duplex capability from
transmission to link partner.
Advertised 10BT Half- 1 = Advertise 10BT half-duplex capability.
Duplex Capability
0 = Suppress 10BT half-duplex capability from
transmission to link partner.
DS00002112A-page 58
2016 Microchip Technology Inc.
