Ribbon Cable Interconnect Solutions
Board-to-Board Vertical Receptacles, Double Row, .050 x .050
[1.27 x 1.27] Centerline
A
.028
[0.71]
.120
[3.05]
.050
[1.27]
Material and Finish
Housing—Glass-filled thermoplastic,
black, 94V-0 rated
Polarizing Tab
Contacts—Copper alloy; duplex plated
.000030 [0.00076] gold in mating area,
.000150 [0.00381] tin on solder tail,
with entire contact underplated .000050
[0.00127] nickel
(For Polarization to
Mating Header)
Holddown—Copper alloy; plated
.000150 [0.00381] tin over .000050
[0.00127] nickel
.187
[4.75]
.050
[1.27]
.050
[1.27]
Related Product Data

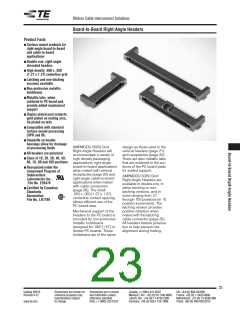

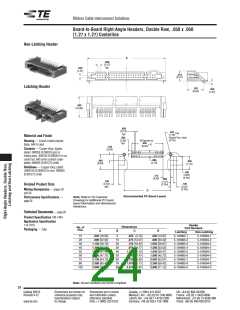

Mating Headers — pages 21 and 24

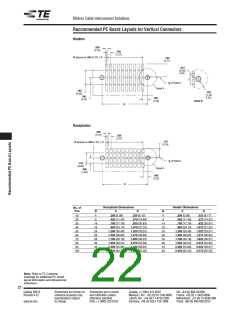

PC Board Layouts — page 22
Performance Specifications —
page 29
Technical Documents — page 29
Product Specification 108-1332
Application Specification
Receptacle
114-7010
No. of
Pos.
Dimension
A
Part Numbers
Packaging — Tube or Tape and Reel
Tube
Tape and Reel*
No Hold Down w/Vacuum Cover
10
20
30
40
50
60
70
80
100
.266 [6.75]
.516 [13.11]
.766 [19.46]
1.016 [25.81]
1.266 [32.16]
1.516 [38.51]
1.766 [44.86]
2.016 [51.21]
2.516 [63.91]
5-104652-1
5-104652-2
5-104652-3
5-104652-4
5-104652-5
5-104652-6
5-104652-7
5-104652-8
6-104652-0
5-147384-1
5-147384-2
5-147384-3
5-147384-4
5-147384-5
5-147384-6
5-147384-7
5-147384-8
5-147384-9
5-147413-1
5-147413-3
5-147413-4
—
5-147413-2
—
—
—
—
* Parts packaged in tape and reel have vacuum pick and place cover.
See PC Board Layout on page 22.
Note: All part numbers are RoHS compliant.
20
Catalog 82012
Revised 4-12
Dimensions are shown for
Dimensions are in inches
and millimeters unless
otherwise specified.
