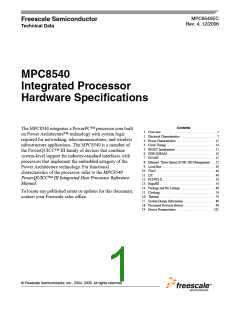

MPC8540EC
Rev. 4, 12/2006
Freescale Semiconductor
Technical Data
MPC8540
Integrated Processor
Hardware Specifications
Contents
The MPC8540 integrates a PowerPC™ processor core built

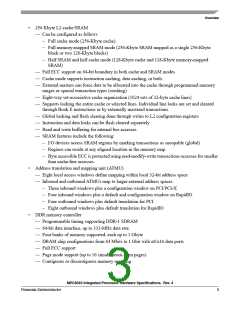

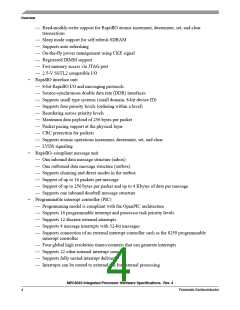

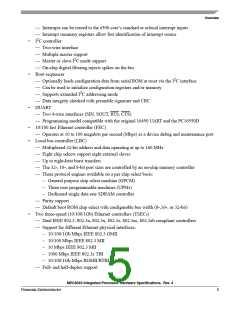

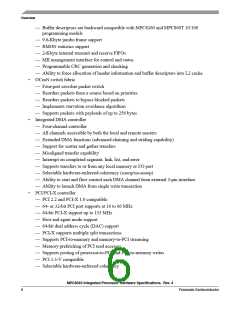

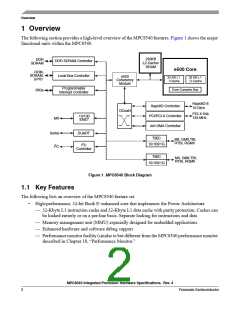

1. Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

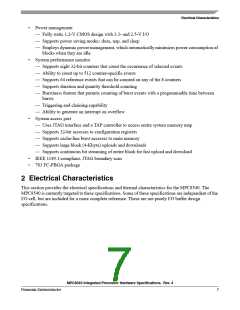

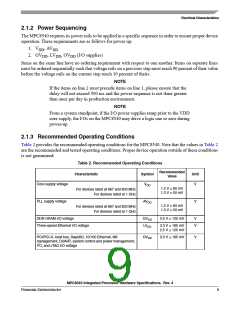

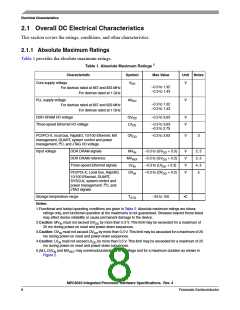

2. Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . 7
3. Power Characteristics . . . . . . . . . . . . . . . . . . . . . . . . 11
4. Clock Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5. RESET Initialization . . . . . . . . . . . . . . . . . . . . . . . . . 15
6. DDR SDRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7. DUART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8. Ethernet: Three-Speed,10/100, MII Management . . 22
9. Local Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10. JTAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
11. I2C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
12. PCI/PCI-X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
13. RapidIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
14. Package and Pin Listings . . . . . . . . . . . . . . . . . . . . . 66
15. Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
16. Thermal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
17. System Design Information . . . . . . . . . . . . . . . . . . . 89
18. Document Revision History . . . . . . . . . . . . . . . . . . . 96
19. Device Nomenclature . . . . . . . . . . . . . . . . . . . . . . . 101
on Power Architecture™ technology with system logic
required for networking, telecommunications, and wireless
infrastructure applications. The MPC8540 is a member of
the PowerQUICC™ III family of devices that combine
system-level support for industry-standard interfaces with
processors that implement the embedded category of the
Power Architecture technology. For functional
characteristics of the processor, refer to the MPC8540
PowerQUICCIII Integrated Host Processor Reference
Manual.
To locate any published errata or updates for this document,
contact your Freescale sales office.
