SECTION 10
APPLICATIONS
This section provides guidelines for using the MC68340. Minimum system-configuration
requirements and memory interface information are discussed.
10.1 MINIMUM SYSTEM CONFIGURATION
One of the powerful features of the MC68340 is the small number of external components
needed to create an entire system. The information contained in the following paragraphs
details a simple high-performance MC68340 system (see Figure 10-1). This system
configuration features the following hardware:
• Processor Clock Circuitry
• Reset Circuitry
• SRAM Interface

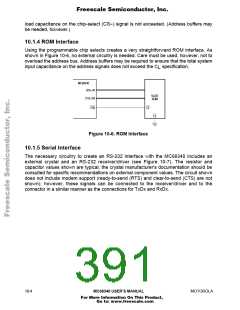

• ROM Interface
• Serial Interface
CLOCK
CIRCUITRY
SRAM
MC68340
SERIAL
INTERFACE
ROM
Figure 10-1. Minimum System Configuration Block Diagram

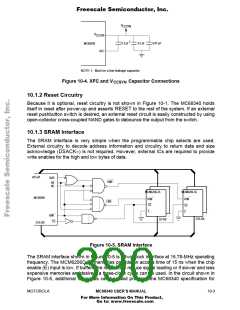

10.1.1 Processor Clock Circuitry
The MC68340 has an on-chip clock synthesizer that can operate from an on-chip phase-
locked loop (PLL) and a voltage-controlled oscillator (VCO). The clock synthesizer uses
an external crystal connected between the EXTAL and XTAL pins as a reference

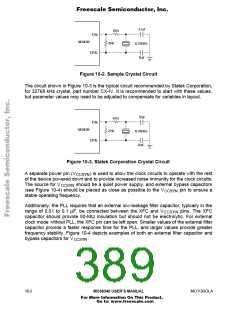

frequency source. Figure 10-2 shows a typical circuit using an inexpensive 32.768-kHz
watch crystal. The 20-M resistor connected between the EXTAL and XTAL pins provides
biasing for a faster oscillator startup time. The crystal manufacturer's documentation
should be consulted for specific recommendations on external component values.
