Clock Functions
11.9 Computer Operating Properly (COP)
The COP or watchdog timer is an added check that a program is running
and sequencing properly. When the COP is being used, software is
responsible for keeping a free running watchdog timer from timing out. If
the watchdog timer times out it is an indication that the software is no
longer being executed in the intended sequence; thus a system reset is
initiated. Three control bits allow selection of seven COP time-out
periods. When COP is enabled, sometime during the selected period the
program must write $55 and $AA (in this order) to the COPRST register.
If the program fails to do this the part will reset. If any value other than
$55 or $AA is written, the part is reset.

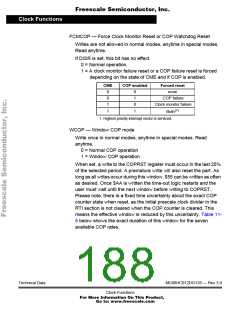

In addition, windowed COP operation can be selected. In this mode,
writes to the COPRST register must occur in the last 25% of the selected
period. A premature write will also reset the part.
11.10 Real-Time Interrupt
There is a real time (periodic) interrupt available to the user. This
interrupt will occur at one of seven selected rates. An interrupt flag and
an interrupt enable bit are associated with this function. There are three
bits for the rate select.
11.11 Clock Monitor
The clock monitor circuit is based on an internal resistor-capacitor (RC)
time delay. If no EXTALi clock edges are detected within this RC time
delay, the clock monitor can optionally generate a system reset. The
clock monitor function is enabled/disabled by the CME control bit in the
COPCTL register. This time-out is based on an RC delay so that the
clock monitor can operate without any EXTALi clock.
