Timer Interface Module (TIM)

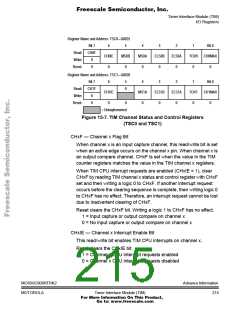

I/O Registers
15.9.1 TIM Status and Control Register
The TIM status and control register (TSC):
•
•
•
•
•
Enables TIM overflow interrupts
Flags TIM overflows
Stops the TIM counter
Resets the TIM counter
Prescales the TIM counter clock
Address: $0020
Bit 7
6
TOIE
0
5
TSTOP
1
4
0
3
0
2
PS2
0
1
PS1
0
Bit 0
PS0
0
Read:
Write:
Reset:
TOF
0
TRST
0
0
0
= Unimplemented
Figure 15-4. TIM Status and Control Register (TSC)
TOF — TIM Overflow Flag Bit
This read/write flag is set when the TIM counter resets to $0000 after
reaching the modulo value programmed in the TIM counter modulo
registers. Clear TOF by reading the TIM status and control register
when TOF is set and then writing a logic 0 to TOF. If another TIM
overflow occurs before the clearing sequence is complete, then
writing logic 0 to TOF has no effect. Therefore, a TOF interrupt
request cannot be lost due to inadvertent clearing of TOF. Reset
clears the TOF bit. Writing a logic 1 to TOF has no effect.
1 = TIM counter has reached modulo value.
0 = TIM counter has not reached modulo value.
TOIE — TIM Overflow Interrupt Enable Bit
This read/write bit enables TIM overflow interrupts when the TOF bit
becomes set. Reset clears the TOIE bit.
1 = TIM overflow interrupts enabled
0 = TIM overflow interrupts disabled
