Introduction
5.7.3
ITCN After Reset
After reset, all of the ITCN registers are in their default states. This means all interrupts are disabled,
except the core IRQs with fixed priorities:
•
•
•
•
•
•
•
•
Illegal Instruction
SW Interrupt 3
HW Stack Overflow
Misaligned Long Word Access
SW Interrupt 2
SW Interrupt 1
SW Interrupt 0
SW Interrupt LP
These interrupts are enabled at their fixed priority levels.

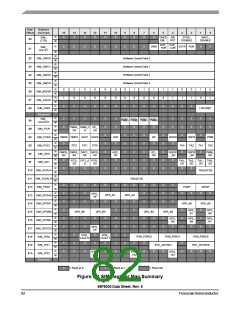

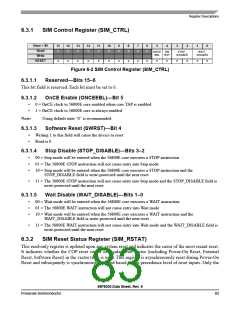

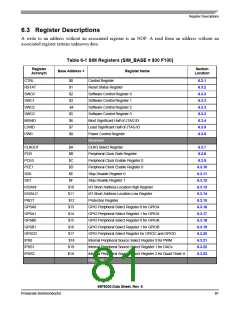

Part 6 System Integration Module (SIM)
6.1 Introduction
The SIM module is a system catchall for the glue logic that ties together the system-on-chip. It controls
distribution of resets and clocks and provides a number of control features. The System Integration
Module’s functions are discussed in more detail in the following sections.
6.2 Features
The SIM has the following features:
•
•
•
•
•
•
•
•
•
Chip reset sequencing
Core and peripheral clock control and distribution
Stop/Wait mode control
System status control
Registers containing the JTAG ID of the chip
Controls for programmable peripheral and GPIO connections
Peripheral clocks for TMR and PWM with a high-speed (3X) option
Power-saving clock gating for peripherals
Three power modes (Run, Wait, Stop) to control power utilization
— Stop mode shuts down the 56800E core, system clock, and peripheral clock
— Wait mode shuts down the 56800E core and unnecessary system clock operation
— Run mode supports full device operation
•
•
Controls the enable/disable functions of the 56800E core WAIT and STOP instructions with write protection
capability
Controls the enable/disable functions of Large Regulator Standby mode with write protection capability
56F8036 Data Sheet, Rev. 6
Freescale Semiconductor
79
