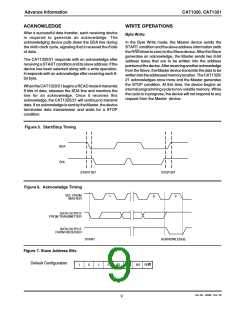

Advance Information
CAT1320, CAT1321
ACKNOWLEDGE
WRITE OPERATIONS
After a successful data transfer, each receiving device
is required to generate an acknowledge. The
acknowledging device pulls down the SDA line during
the ninth clock cycle, signaling that it received the 8 bits
of data.
Byte Write
In the Byte Write mode, the Master device sends the
STARTconditionandtheslaveaddressinformation(with
theR/Wbitsettozero)totheSlavedevice.AftertheSlave
generates an acknowledge, the Master sends two 8-bit
address bytes that are to be written into the address
pointersofthedevice.Afterreceivinganotheracknowledge
fromtheSlave, theMasterdevicetransmitsthedatatobe
writtenintotheaddressedmemorylocation.TheCAT1320/
21 acknowledges once more and the Master generates
the STOP condition. At this time, the device begins an
internalprogrammingcycletonon-volatilememory.While
the cycle is in progress, the device will not respond to any
request from the Master device.
The CAT1320/21 responds with an acknowledge after
receivingaSTARTconditionanditsslaveaddress.Ifthe
device has been selected along with a write operation,
it responds with an acknowledge after receiving each 8-
bit byte.
WhentheCAT1320/21beginsaREADmodeittransmits
8 bits of data, releases the SDA line and monitors the
line for an acknowledge. Once it receives this
acknowledge, the CAT1320/21 will continue to transmit
data.IfnoacknowledgeissentbytheMaster,thedevice
terminates data transmission and waits for a STOP
condition.
Figure 5. Start/Stop Timing
SDA
SCL
START BIT
STOP BIT
Figure 6. Acknowledge Timing
SCL FROM
MASTER
1
8
9
DATA OUTPUT
FROM TRANSMITTER
DATA OUTPUT
FROM RECEIVER
START
ACKNOWLEDGE
Figure 7. Slave Address Bits
Default Configuration
CAT
1
0
1
0
A2
A1
A0 R/W
Doc No. 25085, Rev. 00
9
