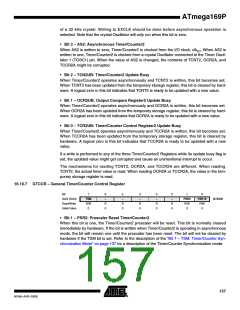

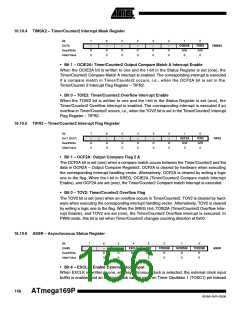

16.10 8-bit Timer/Counter Register Description
16.10.1 TCCR2A – Timer/Counter Control Register A
Bit
7
FOC2A
W
6
WGM20
R/W
0
5
COM2A1
R/W
4
COM2A0
R/W
3
WGM21
R/W
0
2
CS22
R/W
0
1
CS21
R/W
0
0
CS20
R/W
0
(0xB0)
TCCR2A
Read/Write
Initial Value
0
0
0
• Bit 7 – FOC2A: Force Output Compare A
The FOC2A bit is only active when the WGM bits specify a non-PWM mode. However, for ensur-
ing compatibility with future devices, this bit must be set to zero when TCCR2A is written when
operating in PWM mode. When writing a logical one to the FOC2A bit, an immediate compare
match is forced on the Waveform Generation unit. The OC2A output is changed according to its
COM2A1:0 bits setting. Note that the FOC2A bit is implemented as a strobe. Therefore it is the
value present in the COM2A1:0 bits that determines the effect of the forced compare.
A FOC2A strobe will not generate any interrupt, nor will it clear the timer in CTC mode using
OCR2A as TOP.
The FOC2A bit is always read as zero.
• Bit 6, 3 – WGM21:0: Waveform Generation Mode
These bits control the counting sequence of the counter, the source for the maximum (TOP)
counter value, and what type of waveform generation to be used. Modes of operation supported
by the Timer/Counter unit are: Normal mode, Clear Timer on Compare match (CTC) mode, and
two types of Pulse Width Modulation (PWM) modes. See Table 16-2 and ”Modes of Operation”
on page 143.
Table 16-2. Waveform Generation Mode Bit Description(1)
WGM21
(CTC2)
WGM20
(PWM2)
Timer/Counter Mode of
Operation
Update of
OCR2A at
TOV2 Flag
Set on
Mode
TOP
0
1
2
3
0
0
1
1
0
1
0
1
Normal
0xFF
0xFF
OCR2A
0xFF
Immediate
TOP
MAX
PWM, Phase Correct
CTC
BOTTOM
MAX
Immediate
TOP
Fast PWM
MAX
Note:
1. The CTC2 and PWM2 bit definition names are now obsolete. Use the WGM21:0 definitions.
However, the functionality and location of these bits are compatible with previous versions of
the timer.
• Bit 5:4 – COM2A1:0: Compare Match Output Mode A
These bits control the Output Compare pin (OC2A) behavior. If one or both of the COM2A1:0
bits are set, the OC2A output overrides the normal port functionality of the I/O pin it is connected
to. However, note that the Data Direction Register (DDR) bit corresponding to OC2A pin must be
set in order to enable the output driver.
When OC2A is connected to the pin, the function of the COM2A1:0 bits depends on the
WGM21:0 bit setting. Table 16-3 shows the COM2A1:0 bit functionality when the WGM21:0 bits
are set to a normal or CTC mode (non-PWM).
