ASAHI KASEI
[AKD4113-B]
Control Software Manual
Set-up of evaluation board and control software

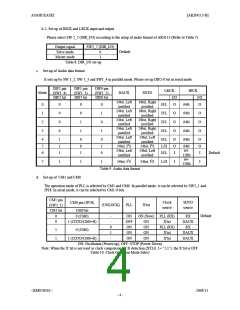

1. Set up the AKD4113-B according to previous term.
2. Connect IBM-AT compatible PC with AKD4113-B by 10-line type flat cable (packed with AKD4113-B). Take care
of the direction of 10pin header. (Please install the driver in the CD-ROM when this control software is used on
Windows 2000/XP. Please refer “Installation Manual of Control Software Driver by AKM device control software”.
In case of Windows95/98/ME, this installation is not needed. This control software does not operate on Windows
NT.)
3. Insert the CD-ROM labeled “AKD4113-B Evaluation Kit” into the CD-ROM drive.
4. Access the CD-ROM drive and double-click the icon of “akd4113-b0.exe” to set up the control program.
5. Then please evaluate according to the follows.
Operation flow
Keep the following flow.
1. Set up the control program according to explanation above.
2. Click “Write default” button.
3. Then set up the dialog and input data.
Explanation of each buttons
1. [Port Setup] :
2. [Write default] :
3. [All Write] :
4. [Read All] :
5. [Function1] :
6. [F3] :
Set up the printer port.
Initialize the register of AK4113.
Write all registers that is currently displayed.
All the registers of AK4113 are read.
Dialog to write data by keyboard operation.
Dialog of sequential writing.
7. [SAVE] :
Save the current register setting.
8. [OPEN] :
9. [Write] :
10. [Read] :
Write the saved values to all register.
Dialog to write data by mouse operation.
The data corresponding to each register is read.
<KM076501>
2004/11
- 8 -
AKM [ ASAHI KASEI MICROSYSTEMS ]
