VS1005g Datasheet
10 VS1005 PERIPHERALS AND REGISTERS
10.3 VS1005 Peripherals
System peripherals are located in Y-address space. The peripherals that use PLL clock are
in addresses 0xFC00 - 0xFD3F and peripherals that use xtal clock are in addresses 0xFE00 -
0xFEDF.
Peripheral address spaces are summarized in the following table:
VS1005 Peripheral Addresses
Device
Address
PLL clocked pheripherals
0xFC00 - 0xFC1F
0xFC20 - 0xFC3F
0xFC40 - 0xFC4F
0xFC50 - 0xFC5F
0xFC60 - 0xFC65
Interrupt controller

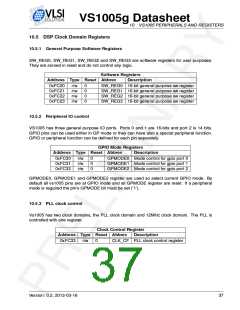

DSP interface registers
SPI 0
SPI 1
10base-t ethernet controller
0xFC66 - 0xFC6C DSP interface for peripheral data buffer
0xFC70 - 0xFC76 Reed-Solomon codes
0xFC77 - 0xFC7A Nand flash interface
0xFC7B - 0xFC7F SD card interface
0xFC80 - 0xFC9F
High Speed USB
0xFCA0 - 0xFCBF 16-bit GPIO port 0
0xFCC0 - 0xFCDF 16-bit GPIO port 1
0xFCE0 - 0xFCFF 14-bit GPIO port 2
0xFD00 - 0xFD1F
S/PDIF
XTAL clocked pheripherals
0xFE00 - 0xFE1F
0xFE20 - 0xFE3F
0xFE40 - 0xFE5F
0xFE60 - 0xFE7F
0xFE80 - 0xFE9F
Uart
Watchdog
FM and A/D interface
I2S
Timers
0xFEA0 - 0xFEBF RTC interface
0xFEC0 - 0xFEDF Control and configuration registers for 12 MHz clock
Version: 0.2, 2012-03-16
33
