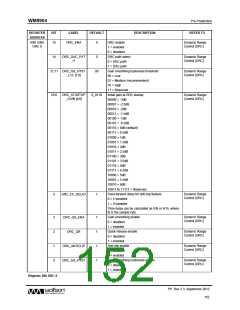

WM8904
Pre-Production
REGISTER
ADDRESS
BIT
LABEL
DEFAULT
DESCRIPTION
GPIO Output Clock Divider
REFER TO
Digital Audio
Interface Control
R26 (1Ah)
Audio
Interface 2
11:8
OPCLK_DIV
[3:0]
0000
0000 = SYSCLK
0001 = SYSCLK / 2
0010 = SYSCLK / 3
0011 = SYSCLK / 4
0100 = SYSCLK / 5.5
0101 = SYSCLK / 6
0110 = SYSCLK / 8
0111 = SYSCLK / 12
1000 = SYSCLK / 16
1001 to 1111 = Reserved
BCLK Frequency (Master Mode)
00000 = SYSCLK
Digital Audio
Interface Control
4:0
BCLK_DIV [4:0]
0_0100
00001 = SYSCLK / 1.5
00010 = SYSCLK / 2
00011 = SYSCLK / 3
00100 = SYSCLK / 4 (default)
00101 = SYSCLK / 5
00110 = SYSCLK / 5.5
00111 = SYSCLK / 6
01000 = SYSCLK / 8
01001 = SYSCLK / 10
01010 = SYSCLK / 11
01011 = SYSCLK / 12
01100 = SYSCLK / 16
01101 = SYSCLK / 20
01110 = SYSCLK / 22
01111 = SYSCLK / 24
10000 = SYSCLK / 25
10001 = SYSCLK / 30
10010 = SYSCLK / 32
10011 = SYSCLK / 44
10100 = SYSCLK / 48
Register 1Ah Audio Interface 2
REGISTER
ADDRESS
BIT
LABEL
DEFAULT
DESCRIPTION
REFER TO
Audio Interface LRC Direction
0 = LRC is input
Digital Audio
Interface Control
R27 (1Bh)
Audio
Interface 3
11
LRCLK_DIR
0
1 = LRC is output
LRC Rate (Master Mode)
LRC clock output = BCLK / LRCLK_RATE
Integer (LSB = 1)
Digital Audio
Interface Control
10:0
LRCLK_RATE 000_0100_
[10:0] 0000
Valid range: 8 to 2047
Register 1Bh Audio Interface 3
PP, Rev 3.3, September 2012
148
