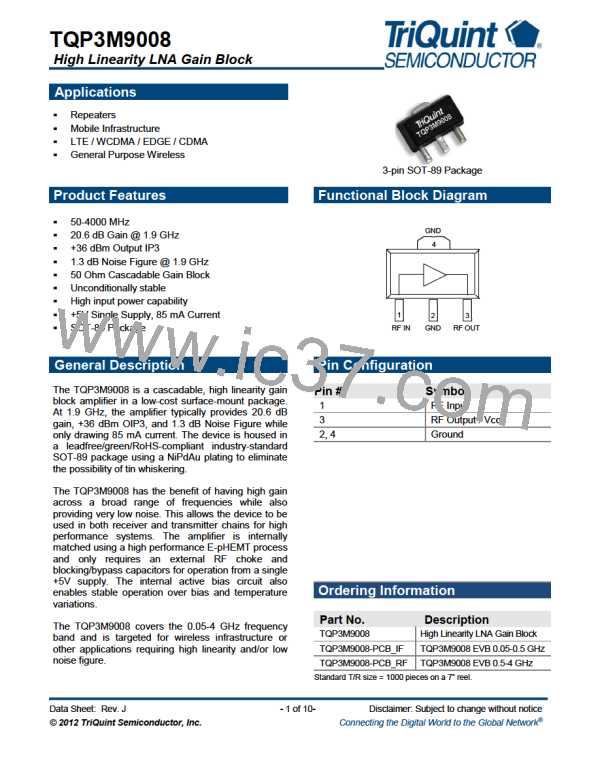

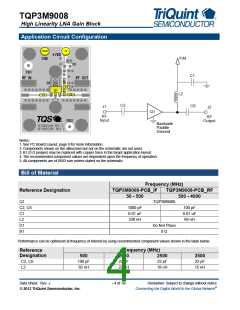

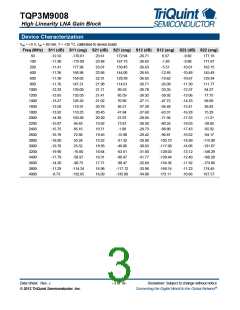

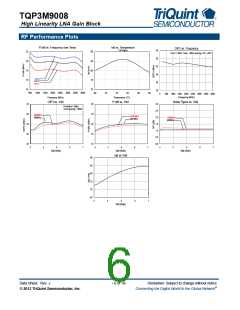

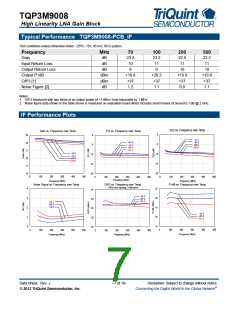

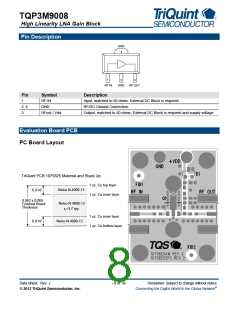

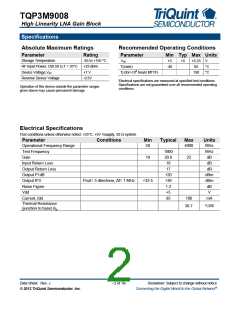

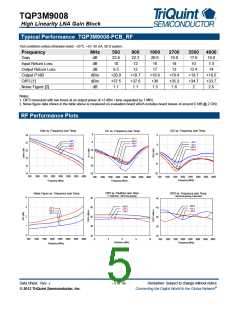

TQP3M9008
High Linearity LNA Gain Block

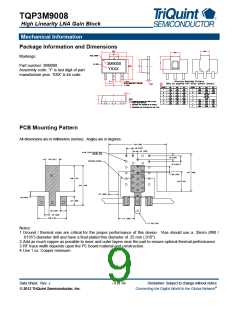

Mechanical Information
Package Information and Dimensions
Markings:
3M9008
YXXX
Part number: 3M9008
Assembly code: ‘Y’ is last digit of part
manufacture year. ‘XXX’ is lot code.
PCB Mounting Pattern
All dimensions are in millimeters (inches). Angles are in degrees.
Notes:
1.Ground / thermal vias are critical for the proper performance of this device. Vias should use a .35mm (#80 /
.0135”) diameter drill and have a final plated thru diameter of .25 mm (.010”).
2.Add as much copper as possible to inner and outer layers near the part to ensure optimal thermal performance.
3.RF trace width depends upon the PC board material and construction.
4.Use 1 oz. Copper minimum.
