OPP5
Coarse steps (DVFS)
Fine steps (AVS)
OPP4
OPP3
OPP Change end
OPP2
OPP1
OPP Change start
TSR TI2C
TSMPS
TSR TI2C
TSMPS
TSR TI2C
TSMPS
TSR TI2C
TSMPS
SWCS046-012
(1) TSR: Time used by the SmartReflex controller
(2) TI2C: Time used for data transfer through the I2C interface
(3) TSMPS: Time required by the SMPS to converge to new voltage value
Figure 14. SmartReflex Operation Example

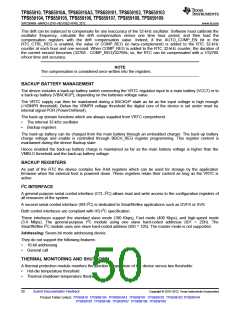

32-kHz RTC CLOCK
The TPS65910 device can provide a 32-kHz clock to the platform through the CLK32KOUT output, the source of
this 32-kHz clock can be:
•
•
•
32-kHz crystal connected from OSC32IN to OSC32KOUT pins
A square-wave 32-kHz clock signal applied to OSC32IN input (OSC32KOUT kept floating).
Internal 32-kHz RC oscillator, to reduce the BOM, if an accurate clock is not needed by the system.
Default selection of a 32-kHz RC oscillator versus 32-kHz crystal oscillator or external square-wave 32-kHz clock
depends on the Boot mode or device version (EEPROM programming):
•
•
BOOT1 = 0, BOOT0 = 1: quartz oscillator or external square wave 32-kHz clock default
BOOT1 = 0, BOOT0 = 0: 32-kHz RC oscillator default
Switching from the 32-kHz RC oscillator to the 32-kHz crystal oscillator or external square-wave 32-kHz clock
can also be programmed though DEVCTRL_REG register, taking benefit of the shorter turn-on time of the
internal RC oscillator.
Switching from the 32-kHz crystal oscillator or external square-wave clock to the RC oscillator is not supported.
